Inspection and Quality Control
Hexagon GLOBALS and Zeiss CAPTUM CMMs at 0.0015 mm accuracy. Full dimensional inspection reports with every order.
Inspection Equipment
- Hexagon GLOBALS 07.10.07 CMM (accuracy: 0.0015 mm)
- Zeiss CAPTUM CMM
- Keyence IM-8010 image measurement system
- Mitutoyo calipers, micrometers, and height gauges
- OLYMPUS XRF for material verification
- Hardness testers (Rockwell and Vickers)
Total: 40+ precision inspection instruments across the quality lab and shop floor.
What You Receive
- First article inspection (FAI) report
- Full dimensional inspection report with CMM data
- Material certificate (available on request)
- RoHS / REACH compliance statement (on request)
Standards Entrances
- Tolerance standards: ISO 2768 / ISO 286 / ASME Y14.5 quick-reference tables, and the +/-0.005 mm polymer capability.

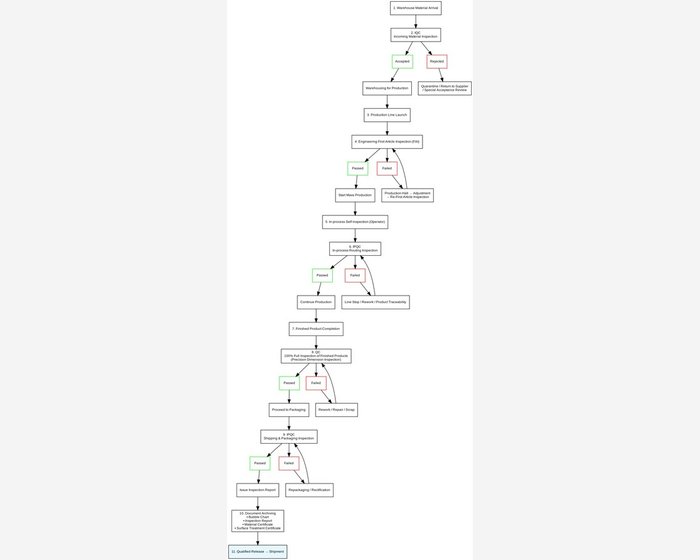

- AQL sampling: ANSI/ASQ Z1.4 (ISO 2859-1) sampling tables and shipment inspection flow.
FAI / FAIR Reporting Capability
First article inspection per AS9102 on request: Form 1 (product accountability), Form 2 (material and process accountability), Form 3 (characteristic accountability with ballooned drawings), backed by CMM measurement data. Reports are issued in English and filed per part number for repeat orders.
Certifications
ISO 9001:2015 (ZTIC, cert 46524Q10234R0M). ISO 13485:2016 (NQCC, cert 50526YY00027R000). AS9100D / EN 9100:2018 (Bureau Veritas, cert CN059081).
Our Equipment
Machines and representative parts for this capability
| Model / Type | Qty | Notes |
|---|---|---|
| CMMs (Hexagon + Zeiss) | n/a | 0.0015 mm accuracy |
| Vision / optical measuring | n/a | Keyence IM-8010 |
| Mitutoyo hand gauges | n/a | In-process QC |
| OLYMPUS XRF spectrometer | n/a | Material verification |
| Total inspection instruments | 40+ |
Representative parts machined on this equipment
Engineering reference behind this page
The tables and bands the sections above rest on, kept by the same engineering team that runs the work.
- The callouts being measuredEach GD&T symbol on the report, with the instrument that proves it.
- Achievable bandsWhat a process can hold, which is what decides the sampling plan.
- Material certificatesGrade data the mill certificate is checked against on arrival.
Full index, including material grades and surface finish data: engineering reference hub.
