Semiconductor & Optics: CNC Machined Parts
Semiconductor and optical equipment rewards shops that hold micron-level geometry on bores, faces, and threads. KGL machines lens barrels, optical mounts, sensor housings, and parts for inspection and packaging equipment. Single-setup turn-mill work keeps flange faces, bores, and keyways aligned, and cleanroom-compatible materials and finishes are available.
Semiconductor & Optics Catalog
47 part families. Every part below links to its own detail page with photos, material notes, and tolerance data.
Semiconductor & Optics
Photoelectric Lens Barrel
Cylindrical barrels, retaining rings, and optical-mount housings for imaging, inspection, and semiconductor equipment.…
View product →
Semiconductor & Optics

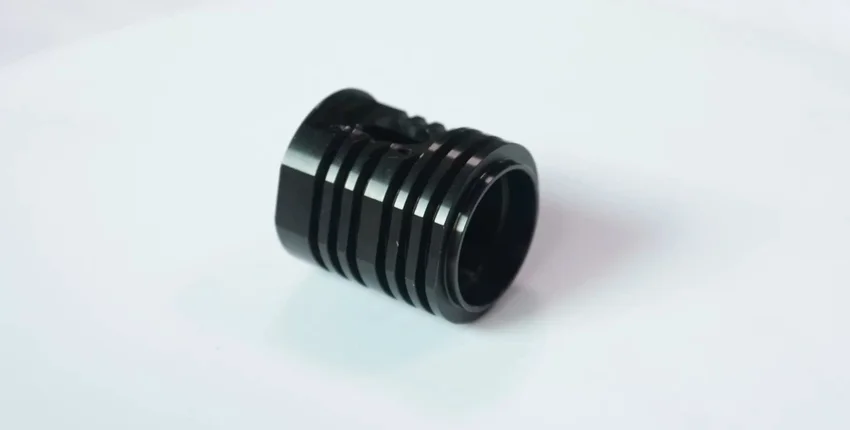

Custom CNC Precision Machining Semiconductors Packaging Inspection Equipment and Automation Parts
KGL home Product Aerospace Components Medical Device components Humanoid Robot Components Optical Sensor Components Housing & Enclosure Components Services Capacity about us Cases …
View product →
Semiconductor & Optics

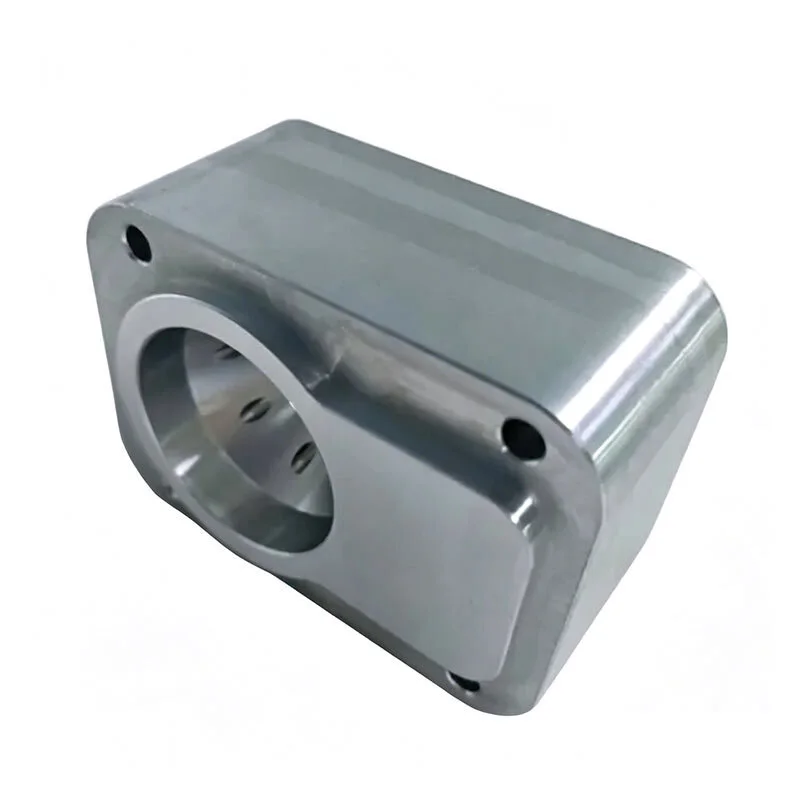

Microscope Quad Lens Seals for Medical and Laboratory Use
Seal rings and seats for quad-lens microscope turrets and laboratory optical instruments. Machined in aluminum or stainless with clean edges, stable dimensions and surface finishes…
View product →
Semiconductor & Optics

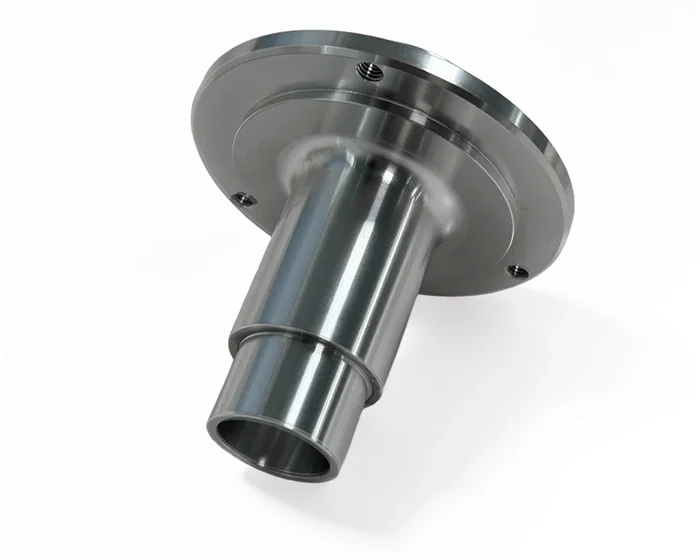

OEM Custom CNC Precision Machining Semiconductors and Automation Part
OEM aluminum alloy precision parts for semiconductor equipment, automation lines and related industrial machinery. Five-axis and 3+2 milling with ±0.005 mm standard tolerances, CMM…
View product →
Semiconductor & Optics

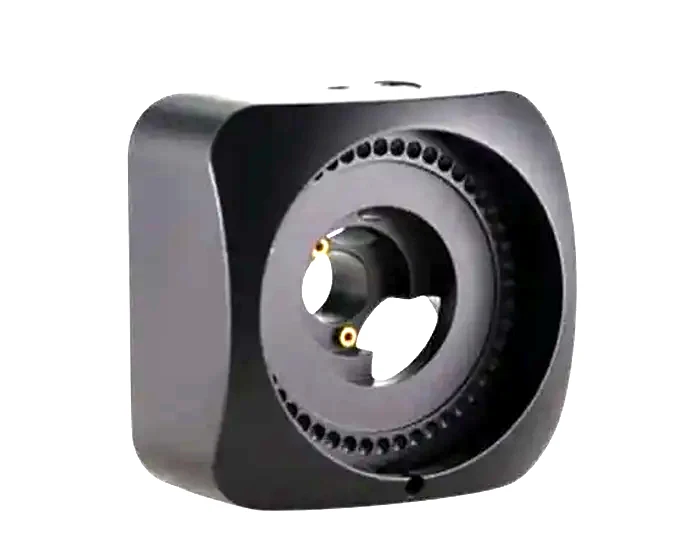

Black Aluminum Case Used in Multimedia Rotary Camera
For any procurement and product manager striving to optimize the supply chain and enhance product competitiveness, cost control and quality assurance are two critical balances. KGL…
View product →
Semiconductor & Optics

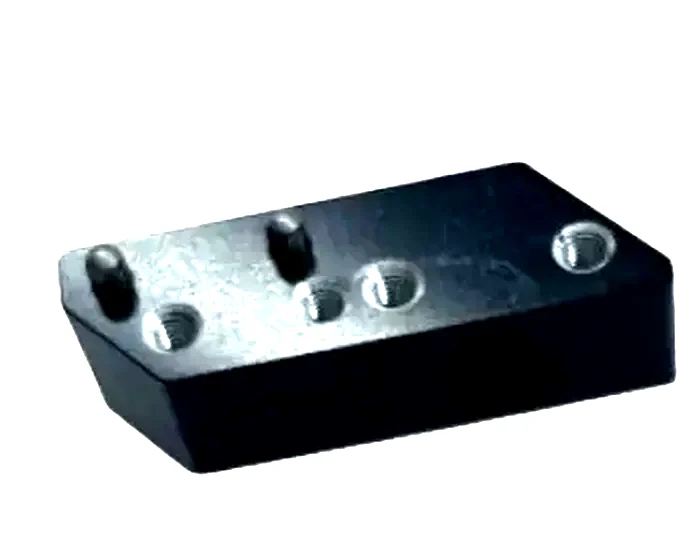

High-Precision Connector Body for Optoelectronic Communication
1. Functions & Applications Sub-Micron Alignment: Provides a highly stable physical channel for fiber ferrules, ensuring perfect alignment.…
View product →
Semiconductor & Optics

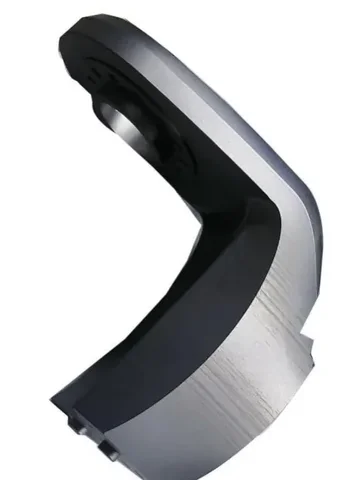

High Precision Joint Shell
The High Precision Joint Shell is a key structural component used in multi-axis robots and precision automation arms, designed to protect internal servo systems and support joint m…
View product →
Semiconductor & Optics
High-Precision Optical Housing (Lens Barrel Holder)
1. Key Features & Optical Functionality Stray Light Elimination: Features custom internal triangular thread profiles designed specifically for light trapping (anti-reflective shadi…
View product →
Semiconductor & Optics

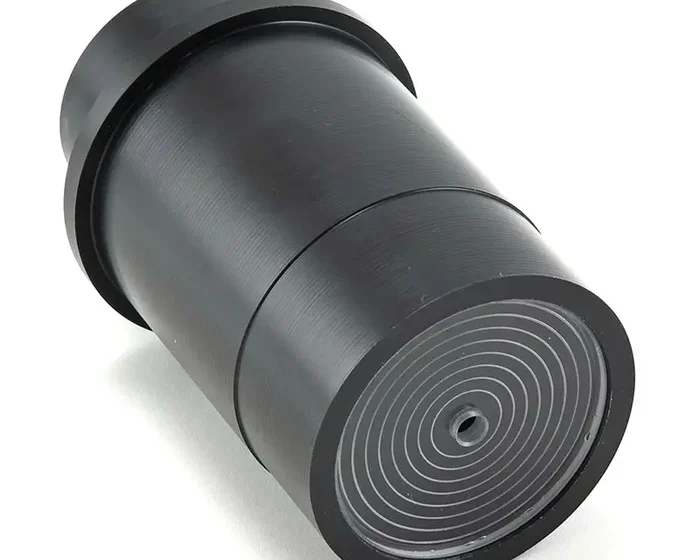

Laser Collimator Adjustment Seat
The main body material of the laser collimator adjustment seat is aviation aluminum alloy. The lightweight design ensures load-bearing rigidity while being suitable for CNC molding…
View product →
Semiconductor & Optics

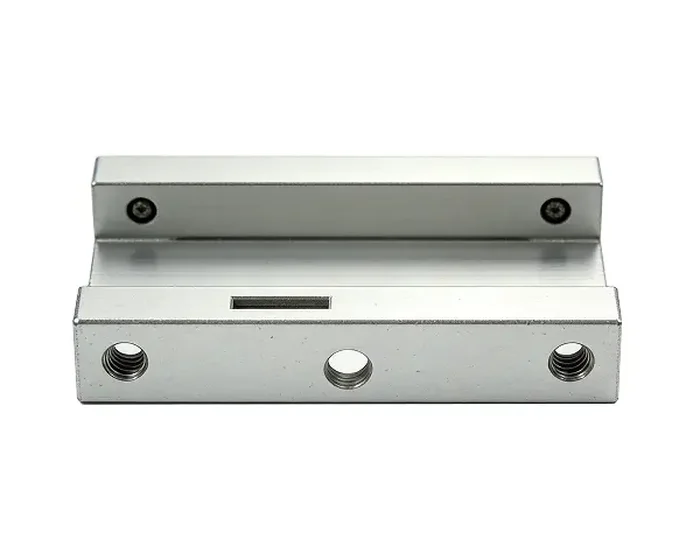

Linear Motor Stator Mounting Bracket
Linear Motor Stator Mounting Bracket Manufacturer | KGL Machining As a professional Linear Motor Stator Mounting Bracket manufacturer and supplier, KGL Machining specializes in pro…
View product →
Semiconductor & Optics

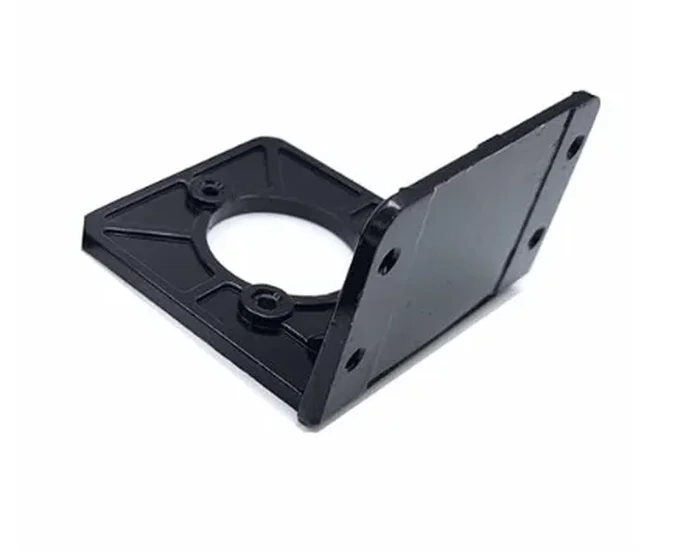

Optical Encoder Mounting Bracket
KGL is a technology-driven manufacturing facility specializing in precision CNC machining, delivering custom components for the high-end manufacturing sector. With 12 years of expe…
View product →
Semiconductor & Optics

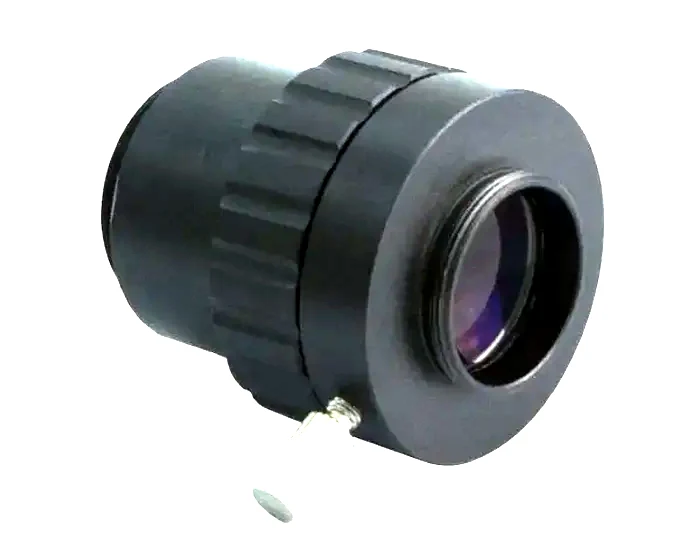

Optical Microscope Adjuster
Our optical microscope adjuster uses aviation aluminum alloy and stainless steel as the core structural materials. Aluminum alloy can improve wear resistance and corrosion resistan…
View product →
Semiconductor & Optics

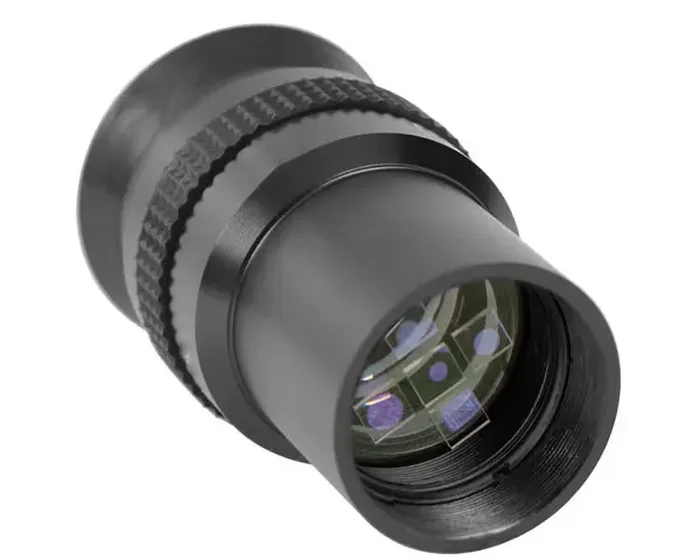

Optical Rotating Eyepiece
KGL machining optical rotating eyepieces. The barrel, gear set and other structural parts are commonly used in aluminum alloy because of their light weight and easy cutting.…
View product →
Semiconductor & Optics

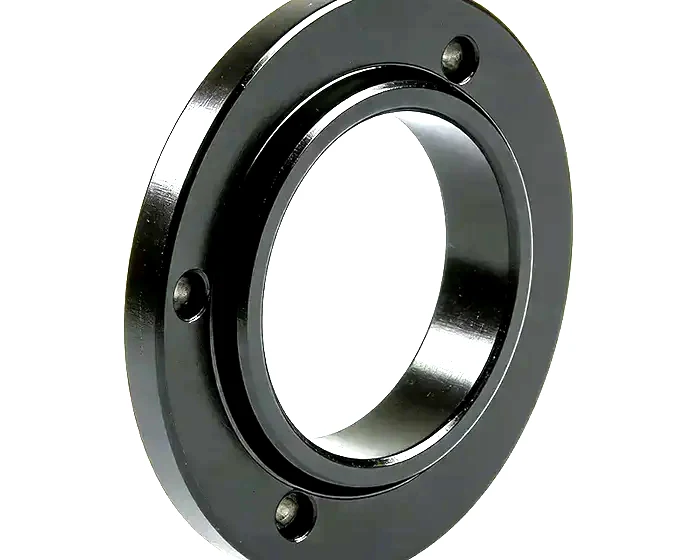

Polarization Rotation Controller
In terms of performance, we never compromise. With the support of Japanese five-axis processing equipment, the processing tolerance is controlled within ±0.005mm.…
View product →
Semiconductor & Optics

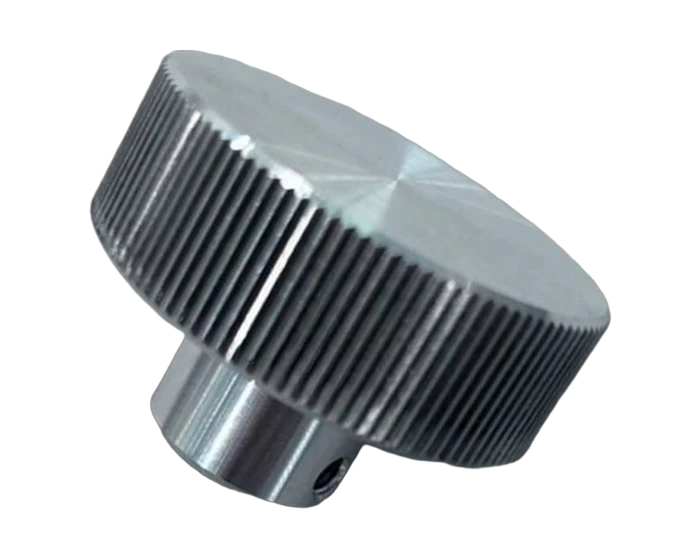

Precision Micro Flange & Base Mount
At KGL, we manufacture core precision-machined components for semiconductor, medical device, and optoelectronic applications. With 15 years of advanced CNC machining expertise, we …
View product →
Semiconductor & Optics

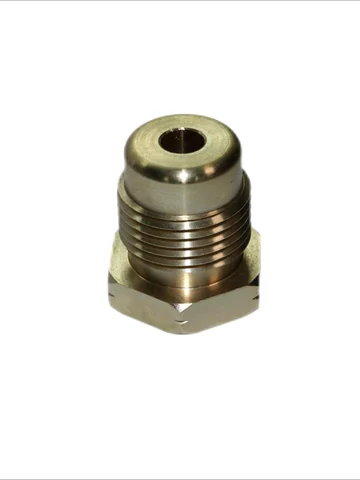

Titanium Alloy Lens Gasket Sealing Joints
KGL machines TC4 (Ti-6Al-4V, ASTM B348 Grade 5) lens gasket sealing joints for semiconductor process gas lines, vacuum foreline isolation, offshore seawater service, and chemical f…
View product →
Semiconductor & Optics

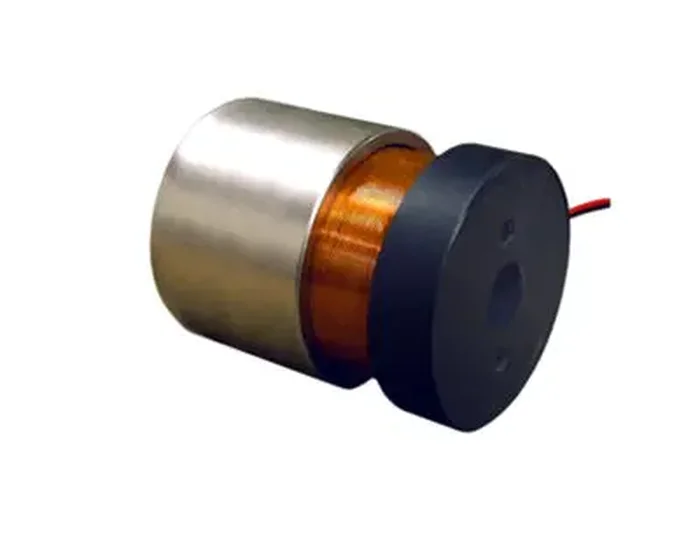

Voice Coil Motor Linear Drive
The material of voice coil motor linear drive KGL Machining chooses permanent magnets using neodymium iron boron to increase thrust density and reduce volume. The coil skeleton use…
View product →
Semiconductor & Optics

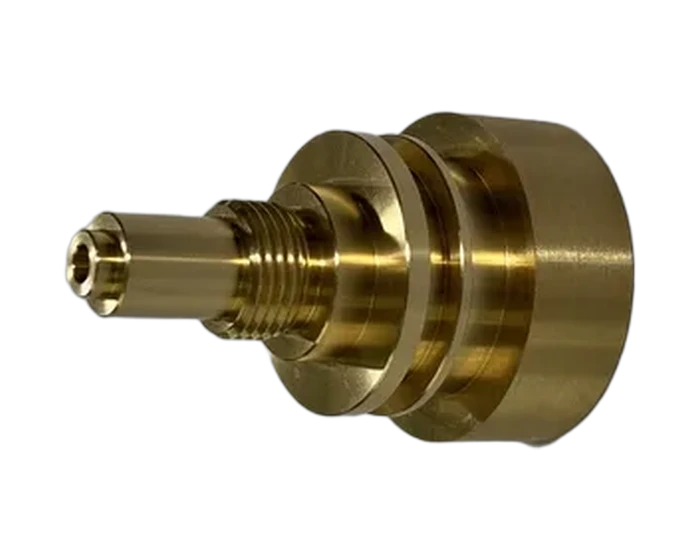

Brass Flow Control Adapters
KGL machines precision brass flow control adapters from C3604 / H59-1 bar in a single turn-mill setup: thread, seal groove, and center orifice cut in one clamping, coaxiality 0.008…
View product →
Semiconductor & Optics

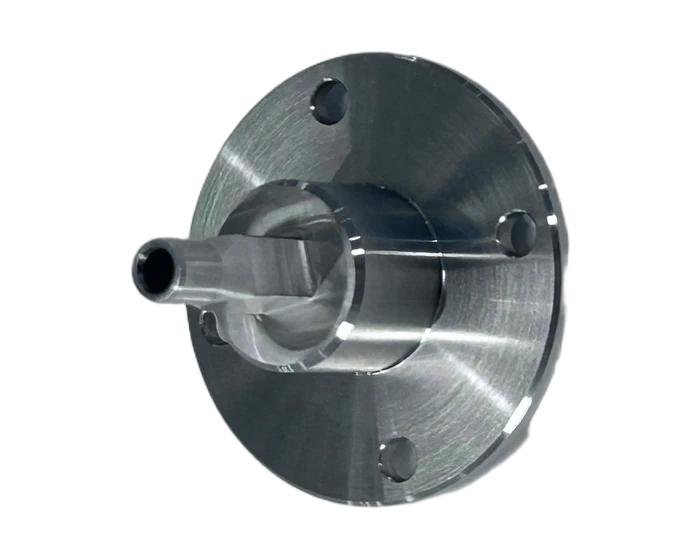

SUS316 Module Interface End Cap with Micro Fluid Orifice
A single-setup turn-mill end cap in SUS316 that integrates a mounting flange, a Ø12 H7 bearing seat, a Ø2.1 mm micro fluid orifice, and an external quick-connect port, with coaxial…
View product →
Semiconductor & Optics

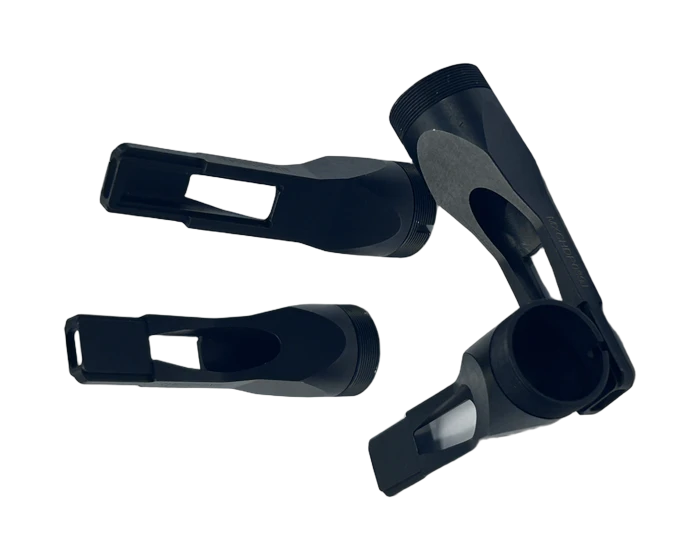

Skeletonized Optical Interface Body with Precision Cone Seat
A topology optimized, skeleton machined interface body in SUS316 that pairs extreme weight reduction with a ±0.005 mm cone seat, 0.008 mm coaxiality, and a QPQ black finish for opt…
View product →
Semiconductor & Optics

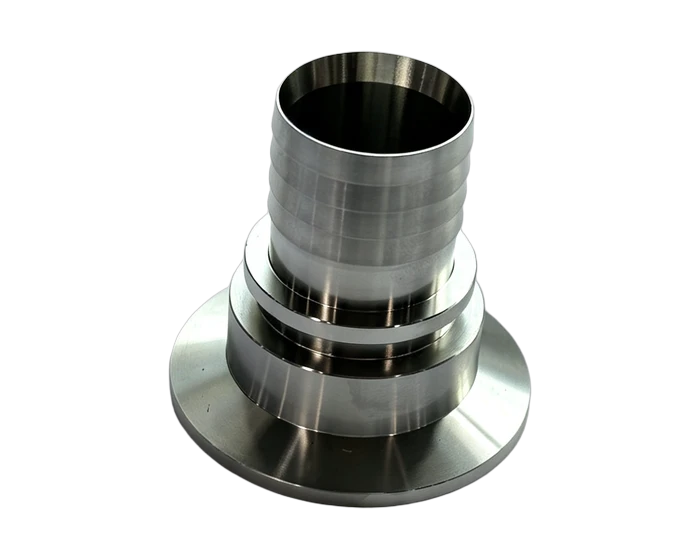

304 Stainless Liquid Cooling Adapter, 2.0 in OD Turned Body
A symmetrical 304 stainless cooling adapter turned from tube stock: 2.0 in outside diameter, 0.88 in bore, 1.81 in long, to ASME Y14.5 imperial callouts with AWS D18.1 welds and ev…
View product →
Semiconductor & Optics

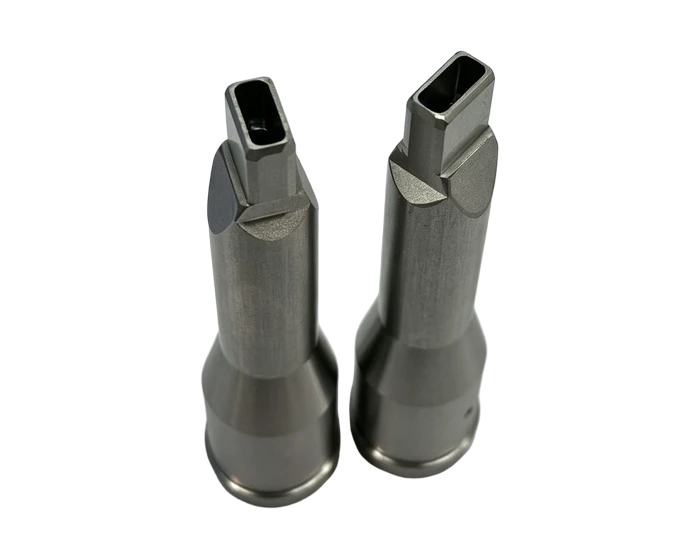

AGT-MT-APC Optical Interface Body in SUS303
A compact AGT-MT-APC optical interface body turned and 5-axis milled from SUS303 bar stock: OD 11.6 ±0.02 mm, a 40 degree end chamfer, a tapered precision bore, and marking per the…
View product →
Semiconductor & Optics

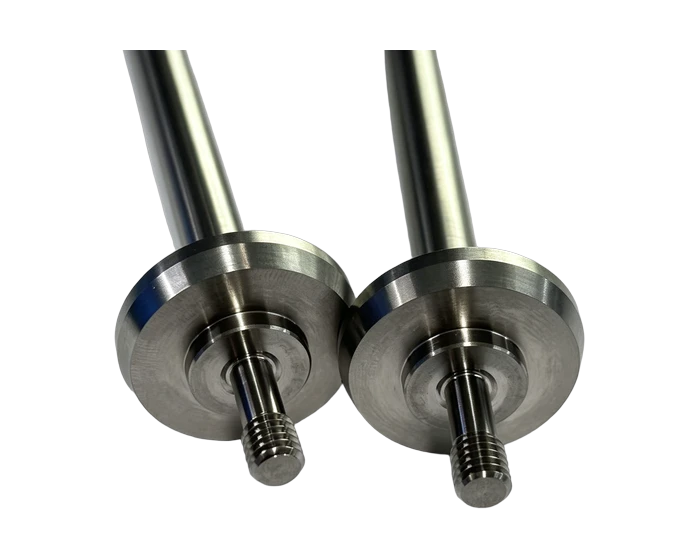

Ti6Al4V Titanium Front Cover Control Shaft with Double Hex
A front cover control shaft turned from Ti6Al4V (ASTM Grade 5) titanium in annealed condition: double hex drive profile, controlled total length, passivated finish, 100 percent thr…
View product →
Semiconductor & Optics

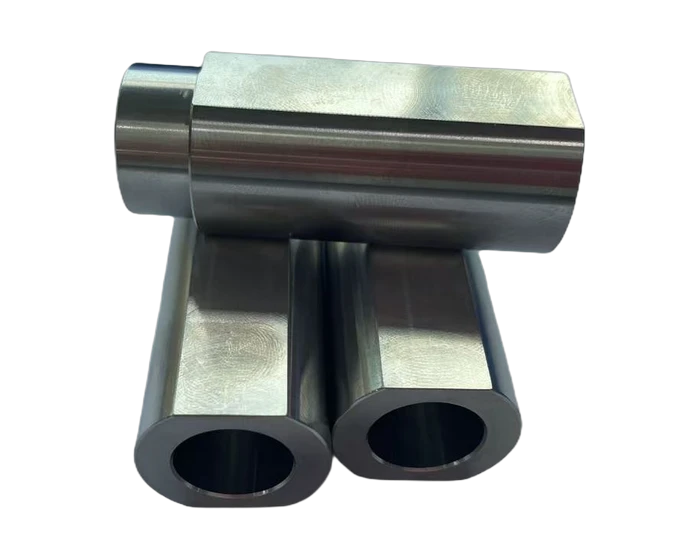

304 Stainless Bayonet Air Cylinder Adapter
A bayonet style quick connect adapter for air cylinders, turned from 304 stainless: Ø1.25 in head, Ø0.625 in stem held +0.003/0, 0.938 in across flats hex, 1/2-20 UNC-2B thread, an…
View product →
Semiconductor & Optics

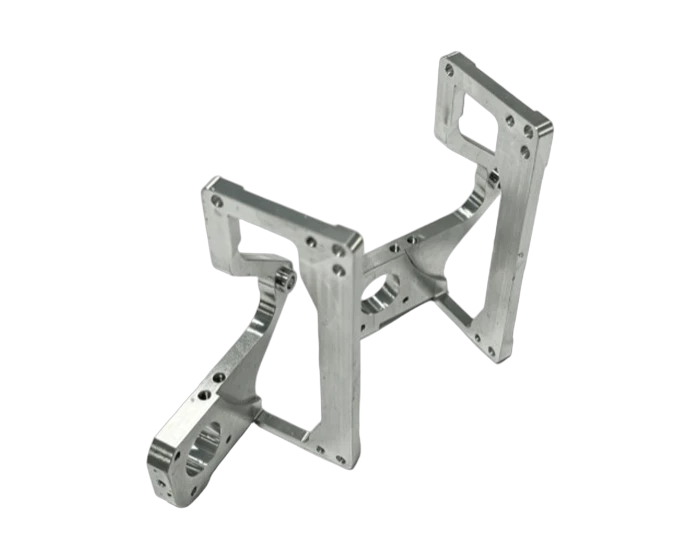

7075 Aluminum Precision Actuator Joint Bracket
A skeletonized thin wall bracket for actuator joints, 5 axis milled in 7075 or 6061 aluminum with motor flange faces, 18.0 H7 bearing bores, and M2/M3 Helicoil reinforced threads, …
View product →
Semiconductor & Optics

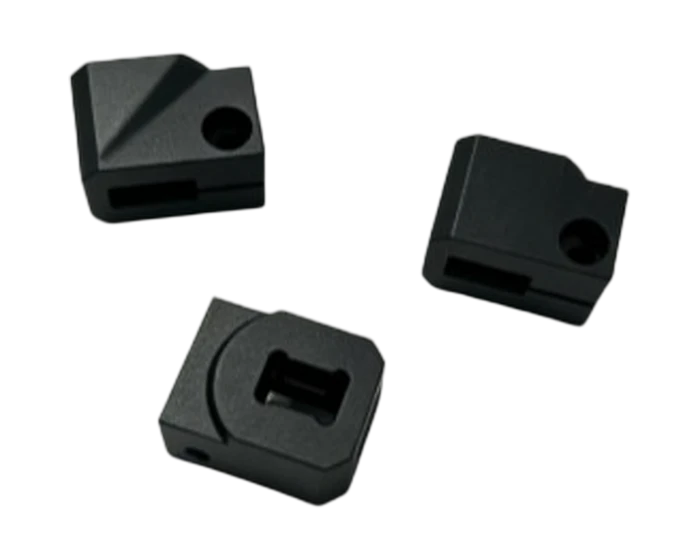

Black POM OST MMC Connector Adapter
A 19 x 13 x 14.98 mm MMC connector adapter machined from black POM: center I shaped terminal slot with parallelism 0.02, side M2.5 6H locking thread, 17 and 3.5 mm counterbores, al…
View product →
Semiconductor & Optics

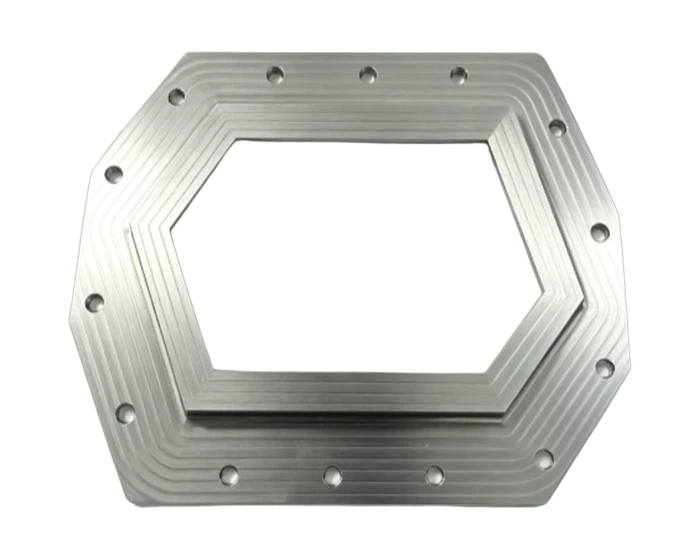

TC4 Titanium Octagonal Sealing Flange Block
An octagonal titanium sealing flange with a large see through window: 18X M3 threaded holes positioned at 0.1 to 0.2 mm, flatness 0.05 mm, R2 seal lip and 2.12 +0.05 mm seal groove…
View product →
Semiconductor & Optics

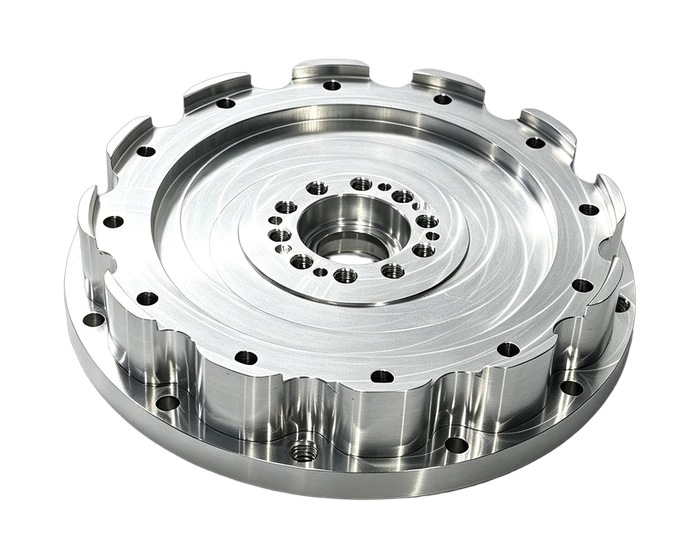

7075-T6 Sensor Replacement Part
A disc shaped sensor replacement part turned and milled from 7075-T6 bar in one setup with double coordinate control: coaxiality at 0.01, flatness and parallelism at 0.01, threads …
View product →
Semiconductor & Optics

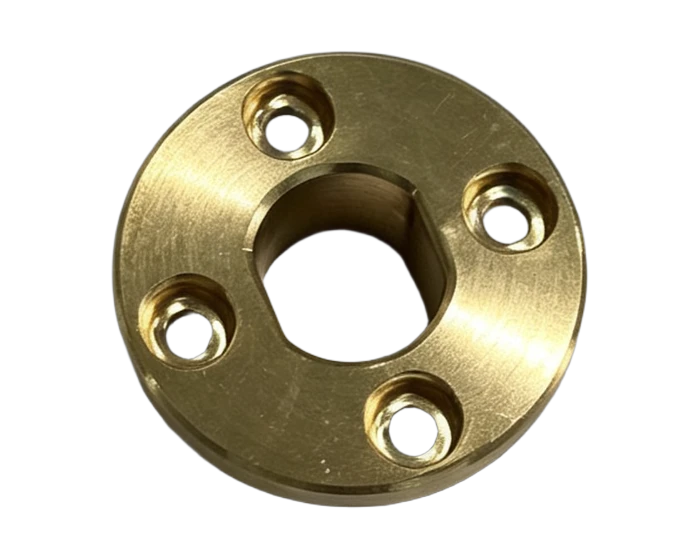

Brass Actuator Bushing, PROMAX
A push rod bushing machined from brass plate in a 3 up nested layout with three parts sharing one fixture: front and back milled to size in two operations, C0.2 chamfers, oiled for…
View product →
Semiconductor & Optics

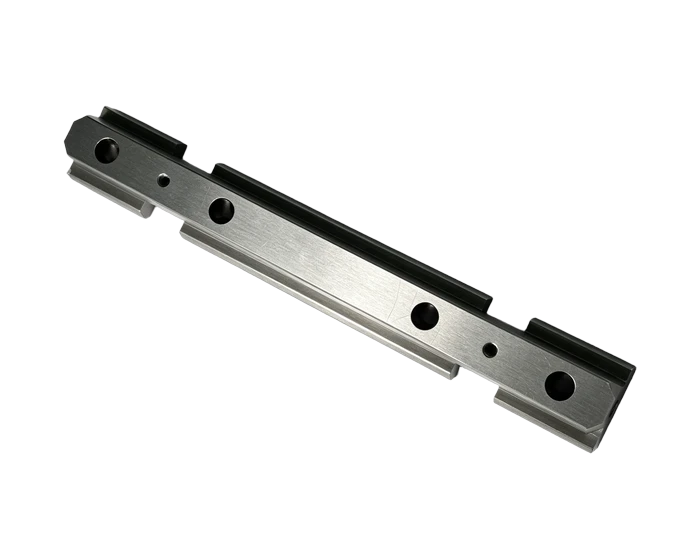

4140 PH Large T-Slot Positioning Block
A T-slot positioning block machined from prehard P20 (4140 PH grade) alloy steel: CNC roughing and finishing with surface grinding for the faces and steps, parallelism and flatness…
View product →
Semiconductor & Optics
SUS316 BNA2 Tilt Motor Bracket
A compact tilt motor mounting bracket machined from SUS316 stainless: the 16.05 +/ 0.03 mm through bore as the key controlled feature, 3.0 and 2.5 mm through holes, M2 threads at 4…
View product →
Semiconductor & Optics

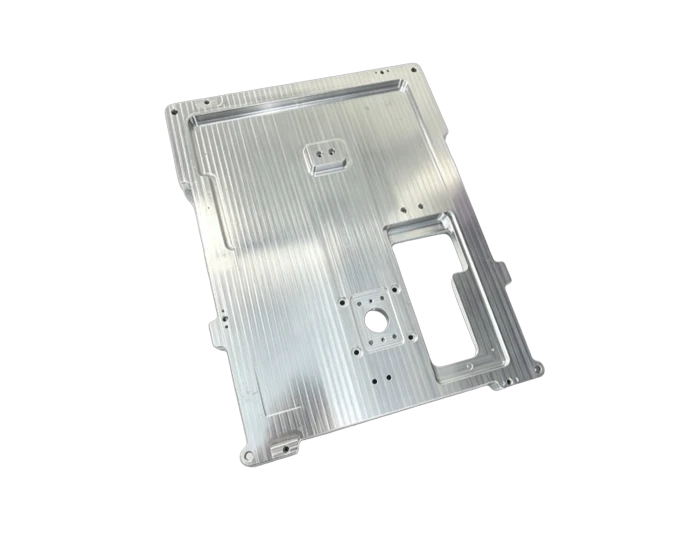

Large Thin Plate Control Baseplate, 6061-T6 with Conductive Anodize
A 300 mm plus rectangular thin panel with pockets on both faces, a large L shaped cable and airflow window, and a central bearing seat with an eight hole bolt pattern. Built for se…
View product →
Semiconductor & Optics

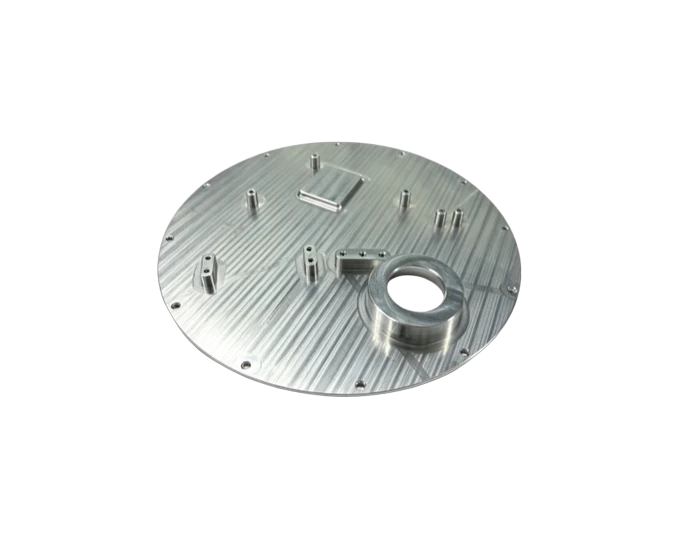

Precision Round Baseplate Cover, Ø180 mm 6061-T6 Sensor Packaging Plate
A large thin circular cover plate with a raised eccentric bearing or sensor seat, standing threaded bosses for stacked PCB or optics mounting, and a precise perimeter hole pattern.…
View product →
Semiconductor & Optics

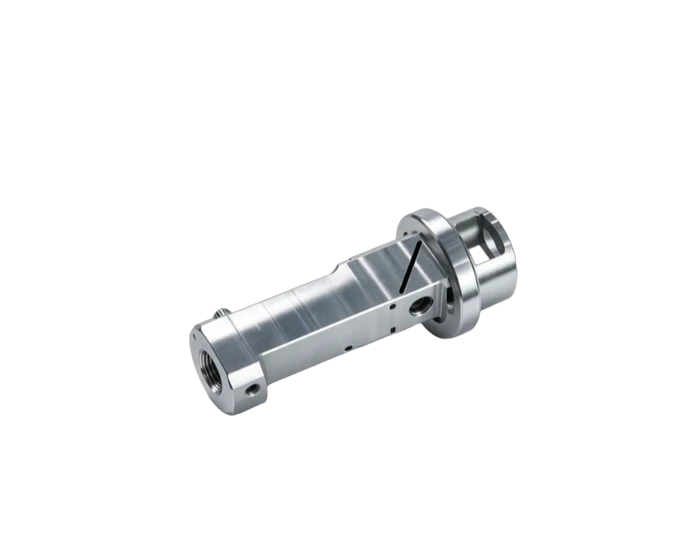

EGW Lens Barrel Mount, 6061 Aluminum with Bead Blast Matte Anodize
Compact 22 by 18 by 63.5 mm barrel mount for precision microscopy and endoscopic imaging. One setup turn milling keeps the optical bore, flange, and 45 degree side slot in strict r…
View product →
Semiconductor & Optics

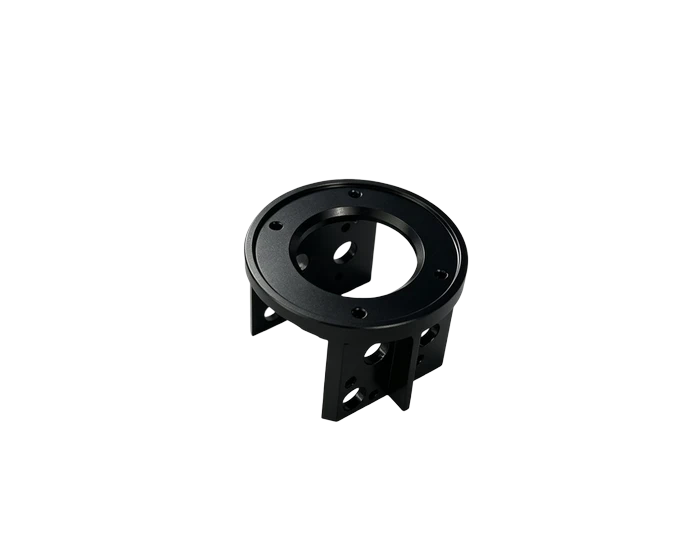

Optical Body Flange Base, 6061 Black Anodized with H12/H13 Bores
A round flanged body base for semiconductor and optical communication equipment, with a multi step center bore cluster at H12/H13 classes and strict profile control.…
View product →
Semiconductor & Optics

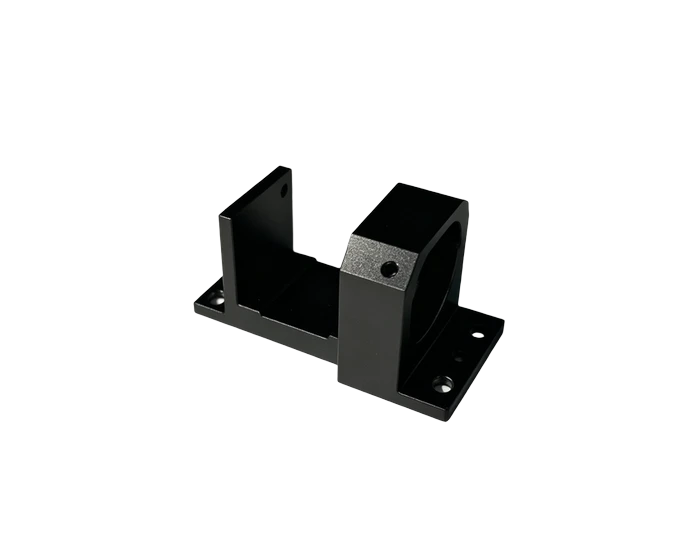

Black Anodized Optical Mount, 6061 with M1.6 to M3 Thread Field
A compact multi cavity mounting seat for semiconductor and optical communication assemblies, with a dense small thread field and strict flatness on the seating face.…
View product →
Semiconductor & Optics

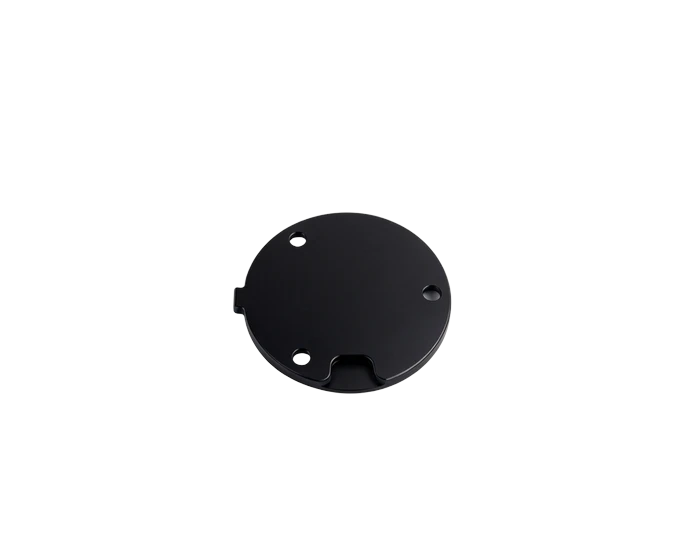

Optical Power Meter Cover, Ø50 x 1.5 mm Thin Disc, Black Anodized
A wafer thin circular cover for optical power meter housings, milled flat with a small thread pattern and an even blast and anodize finish.…
View product →
Semiconductor & Optics

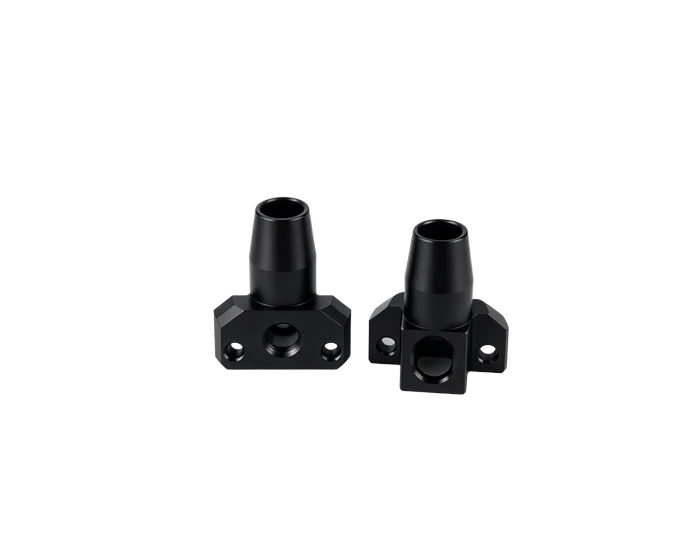

Optical Power Meter Cable Clip, 6061 Turn Mill Machined, 18 mm Long
A compact turn mill composite clip that holds the cable on optical power meter instruments, with controlled critical dimensions and a uniform blast and oxidized finish.…
View product →
Semiconductor & Optics

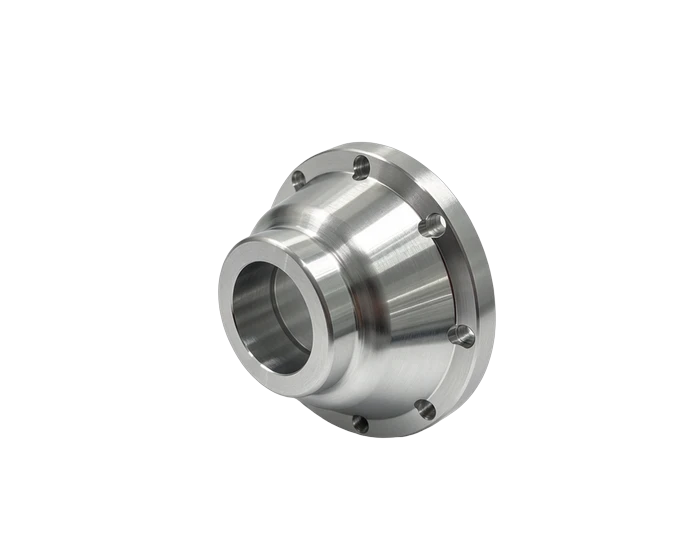

7075-T6 Hard Anodized End Cap, Ø56 mm with H7 Spigot
A precision circular end cap with a sealing spigot and threaded fixings, turned and milled from 7075-T6 with hard anodize on the wear surfaces.…
View product →
Semiconductor & Optics
6061 Instrument Bracket, Multi Step with Ø4 H9 Bores, Black Anodized
A multi step bracket with mixed plain and threaded holes for optical and precision instrument assembly support.…
View product →
Semiconductor & Optics

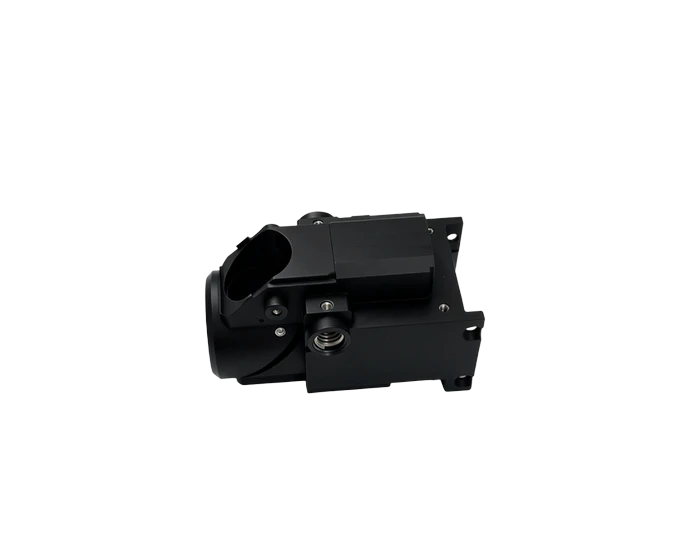

A356 Cast Aluminum Lens Barrel Body, 5 Axis Finish Machined
A cast aluminum optical module housing finished on five axis centers: complex internal cavity, coaxial bore cluster, and multi directional mounting interfaces all cut from the cast…
View product →
Semiconductor & Optics

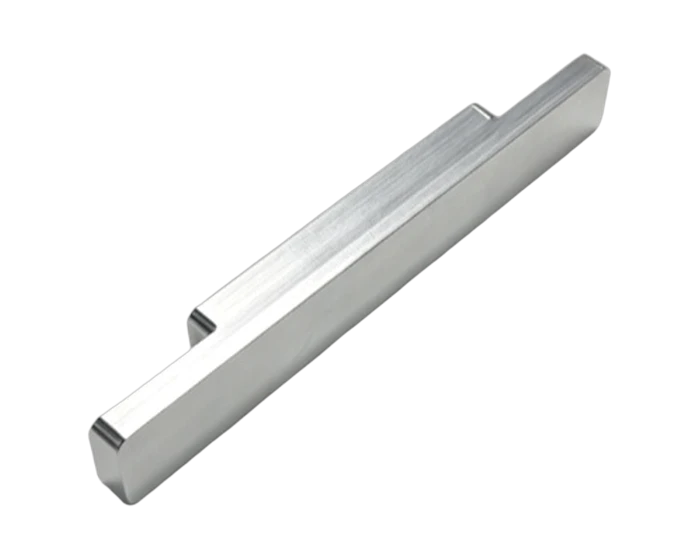

Aluminum Linear Scale Positioning Fixture with 0.39 mm V Grooves
A slender 6061-T6 fixture bar with a 74 mm stepped working section, 0.39 mm deep 90 degree V grooves, end radii of R3 and transverse grip ridges, made for nesting linear scales and…
View product →
Semiconductor & Optics

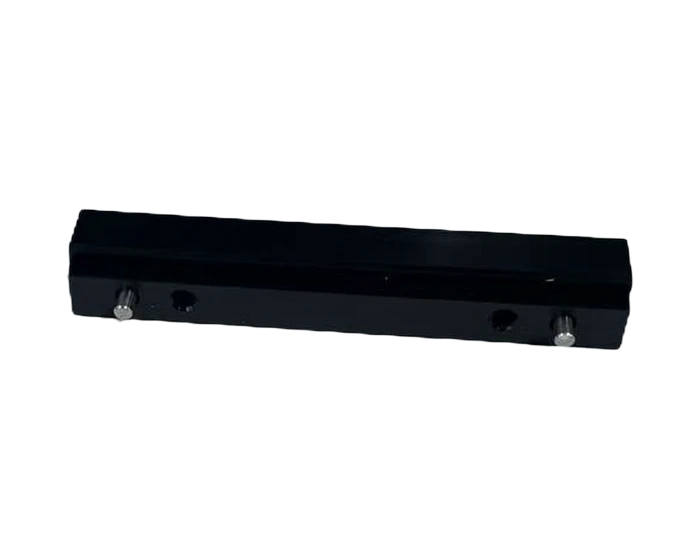

Black Delrin XY Pusher Bar Assembly with Press-Fit Stainless Dowel Pins
A slender black Delrin pusher bar for optical and semiconductor test automation: a self-lubricating POM body that will not mark the parts it touches, two press-fit stainless dowel …
View product →
Semiconductor & Optics

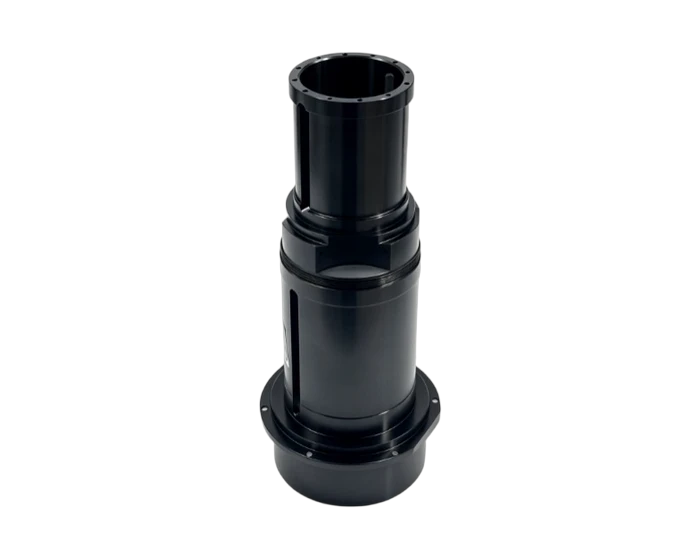

Black Anodized Stepped Lens Barrel, 6H/6g Optic Threads, Coaxiality 0.015 mm
A multi stage optical lens barrel in black anodized aluminum: H6/H7 lens seats stacked down the bore, fine 6H/6g threads for retaining rings, an axial focus slot and a matte black …
View product →
Semiconductor & Optics

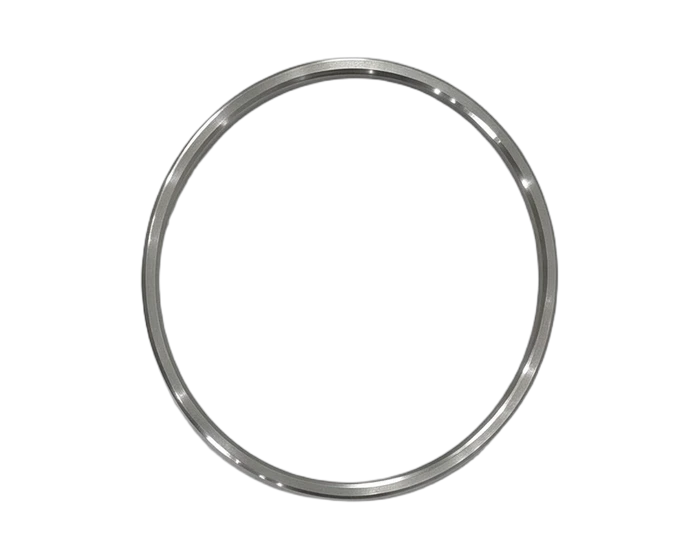

45 Steel Motor Stator Retaining Ring, Quenched and Tempered, Ground Faces
A hardened 45 steel ring that clamps an 85 frame motor stator in place: precision ground 0.02 mm flat faces, 3 +/-0.03 mm thickness, quench and temper heat treatment, and a black o…
View product →
Semiconductor & Optics

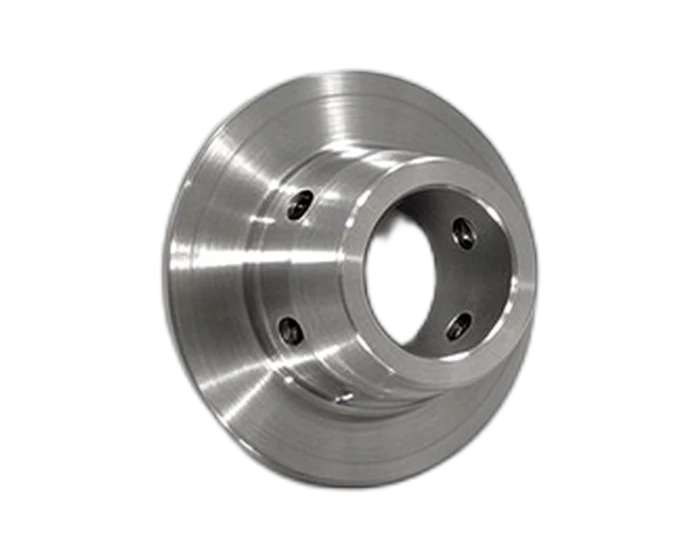

SUS304 Hollow Magnet Ring Seat, g8/h7 Fits, Coaxiality 0.02 mm
A stainless ring seat that locates a motor magnet ring: g8 and h7 stepped fits down a 20 mm bore, one bore at 12.5 +/-0.01 mm, coaxiality 0.02 mm, and six M3 holes equally spaced o…
View product →
Semiconductor & Optics

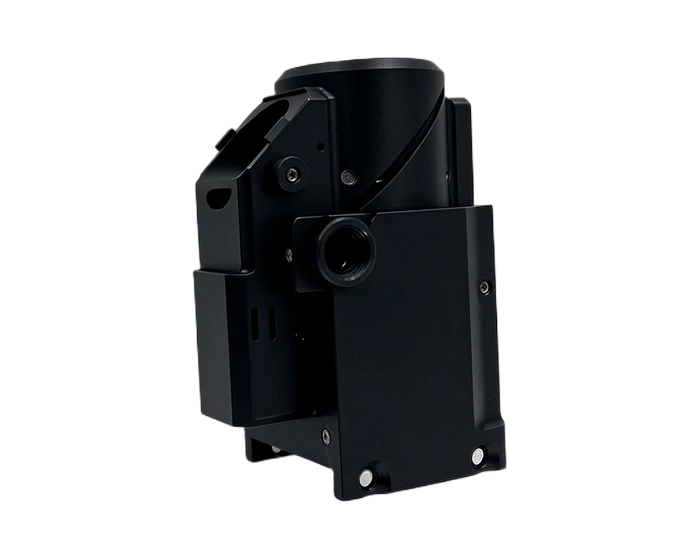

Custom Optical Lens Mount, 6061-T6 with M11 x P0.5 Fine Thread
A compact custom lens mount machined from 6061-T6: an M11 x P0.5 fine thread that positions the optic without play, tight +/-0.04 mm body dimensions, and a bead blasted hard anodiz…
View product →Ready to Machine This Part?
Send your 2D/3D drawings and get a quote within 24 hours. No MOQ for prototypes and small lots.
Request a Quote
