120 x 60 mm Locating Panel in 303 Stainless with Ø4 P7 Dowel Bores

303 stainless locating panel 120 x 60 x 11.8 mm: Ø4 P7 dowel bores at 0.02 mm position, both faces complex milled, go no go gauged 100 percent. Quote in 24 hours, no MOQ.

303 Stainless Multi Slot Locating Panel, P7 Dowel Bores Both Faces Milled

General Industrial Components

A double sided locating panel with arc counterbores, V angled seats, and through slots on one face, mirrored slot work on the other. The Ø4 P7 dowel bores at 0.02 mm position are the parts that matter.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

CNC Milling

Materials

Stainless Steel

Key Specifications

Parameter	KGL Capability
Material	Stainless steel 303
Process	Face milling and datums, double sided milling of pockets and slots, precision drilling and reaming of P7 bores, laser weld repair and re machining, deburring and cleaning
Dimensions	120 x 60 x 11.8 mm
Dowel bores	Ø4 P7 (-0.010/-0.022 mm), position Ø0.02 A\|B
Threaded holes	2X N6 and arc counterbore pattern
Inspection	Ø3.98 go / Ø3.99 no go plug gauges 100 percent, CMM on datums and positions
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

Locating panels earn their keep on the dowel bores. This 120 by 60 by 11.8 mm panel carries Ø4 P7 bores at minus 0.010 to minus 0.022 mm, positioned within 0.02 mm to datums A and B, gauged with Ø3.98 go and Ø3.99 no go plugs on every part, no sampling.

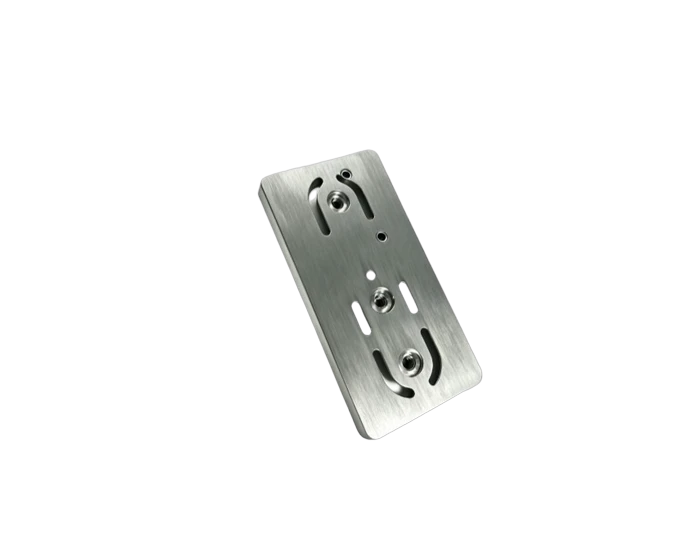

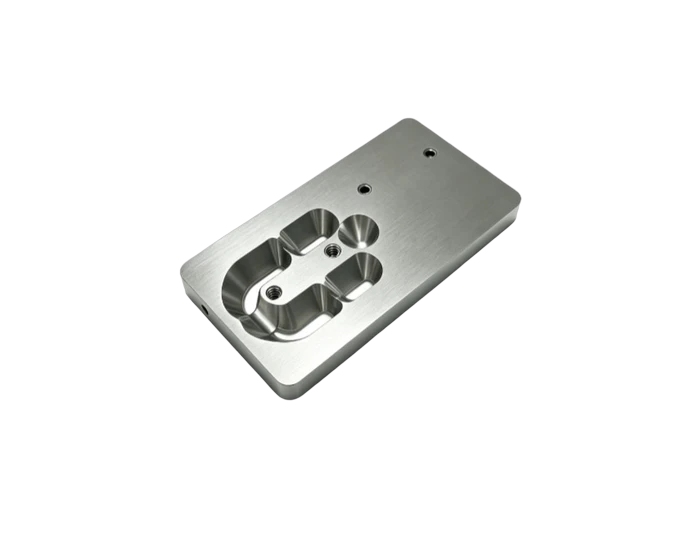

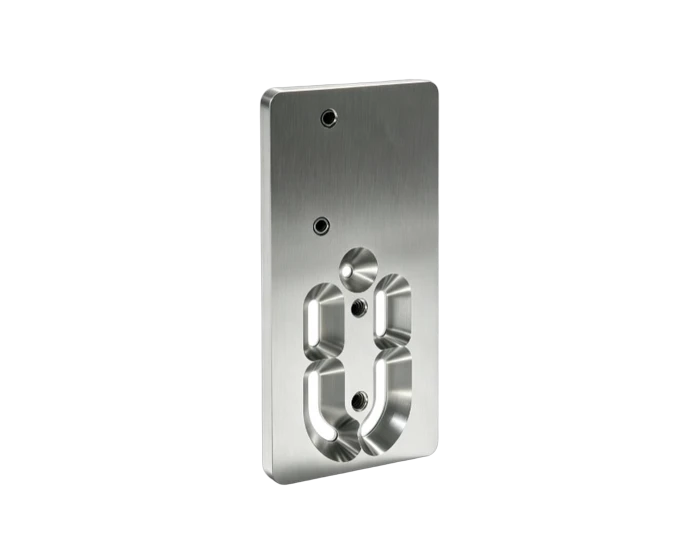

Both faces are heavily milled: arc shaped counterbores, V angled side seats, and threaded holes on one face, with a mirrored pair of long arc through slots on the other. That much removal on a thin 303 plate wants to twist, so clamping force and cutting sequence are staged to keep the panel flat through the process.

One bore carries a laser weld repair and re machining step, which is exactly as interesting as it sounds: weld hardness differs from parent material, so the re machined bore is finish reamed and gauged until the plug gauges confirm the P7 class. The CMM then re verifies datums A, B, C and the dowel positions before release.

This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Part-Specific Advantages

Ø4 P7 dowel bores minus 0.010 to minus 0.022 mm, position 0.02 mm
100 percent go no go gauging with Ø3.98 / Ø3.99 plugs
Both faces complex milled: arc pockets, V seats, through slots
Laser weld repaired bore re machined to P7 and re gauged
Ground datum faces A, B, C

Typical Applications

Locating and indexing panels in precision fixtures
Stainless mounting panels for instrument assemblies
Position critical interface plates with dowel location

Commercial Terms

Commercial	Detail
MOQ	No MOQ; 1-piece prototype supported
Quote	Within 24 hours for complete 2D/3D files
Terms	EXW / FOB Shenzhen
Certifications	ISO 9001:2015
Packaging	Individual bubble wrap, export carton or wooden case
Lead Time	Prototypes 7 to 15 days; production scheduled by volume

Common Questions

Why 303 and not 304 for a locating panel?

303 machines cleaner and holds small bore finish better, and this panel has no welded assembly around it that would need 304 corrosion performance. For gauged bores, machinability is the point.

What happens to a welded bore?

The weld zone is harder than parent material. The bore is re machined with reduced passes and then gauged 100 percent, because the plug gauge is the only honest verdict on a repaired P7 hole.
