304 Stainless Sanitary Base Support Plate, 32 CLA Both Faces
304 stainless base support plate, part 43147 00: No. 4 sanitary brush finish both sides at 32 CLA, R0.205 corners, 0.06 x 45 degree chamfers, ±0.02 / ±0.035 tolerances. Quote in 24 hours.
General Industrial Components

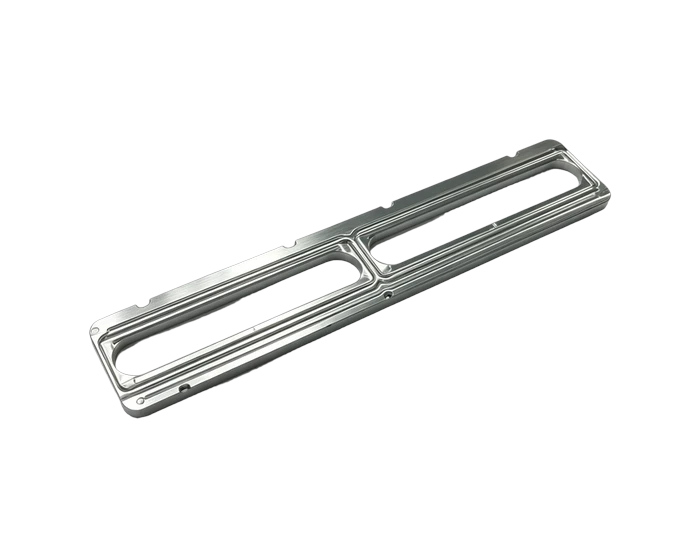

A long plate support with elongated slots for sanitary fluid and food pharmaceutical equipment, finished both sides to hygienic brush specification with all edges broken.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Stainless steel 304 |
| Process | Plate blanking, CNC milling of outline and slots, hole work, bench chamfer and deburr, both side sanitary polishing |
| Finish | No. 4 sanitary brush, 32 CLA both faces |
| Corners and edges | R0.205, chamfer 0.06 x 45 degrees |
| Tolerances | +/-0.02 mm controlled, +/-0.035 mm general |
| Inspection | Dimension check, surface finish verification, visual appearance |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part

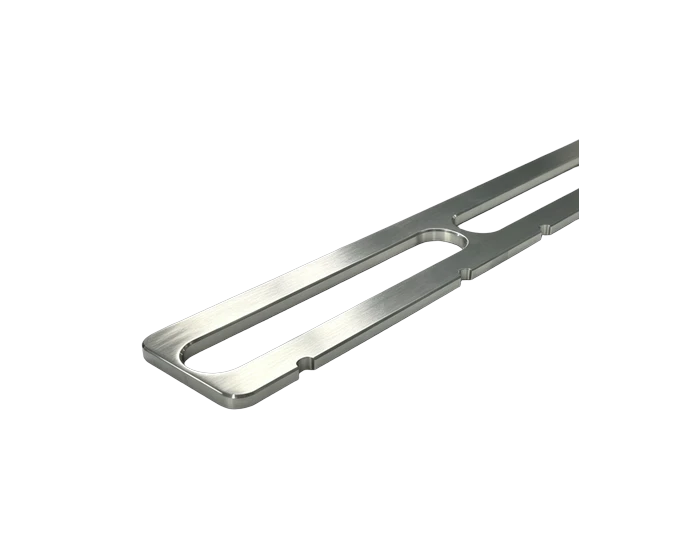

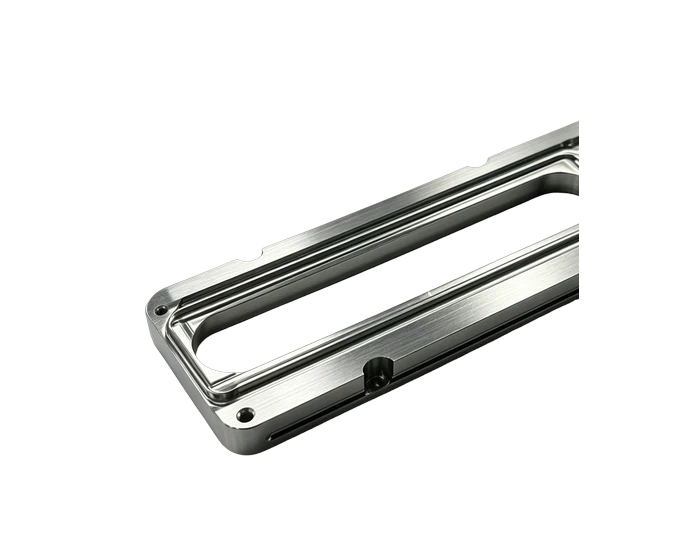

Sanitary equipment judges plates by two things: can it be wiped clean, and does anything trap product. This 304 stainless base support answers both with a No. 4 sanitary brush finish on both faces at 32 CLA, R0.205 corner radii, and 0.06 by 45 degree chamfers breaking every edge, no sharp corners anywhere.
The long plate carries elongated slots for adjustable mounting and clean weld or clamp interfaces. Geometry holds plus or minus 0.02 mm on controlled dimensions and plus or minus 0.035 mm on the general profile, which is comfortable for sanitary assemblies and honest about what a brushed plate needs.
Process is plate blanking, CNC milling of the outline and slots, hole work, bench chamfering and deburring, then dual side sanitary polishing and a dimension plus appearance check before release. Drawings referenced are 43147 00 and Y03 136491 10/13.
This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- No. 4 sanitary brush finish both sides, 32 CLA
- All edges broken: R0.205 corners, 0.06 x 45 degree chamfers
- 304 stainless, cleanable elongated slot layout
- Controlled dimensions plus or minus 0.02 mm
- Food and pharmaceutical equipment ready
Typical Applications
- Support baseplates in sanitary fluid equipment
- Food and pharmaceutical cleanable machine plates
- Washdown duty stainless mounting plates
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
| Lead Time | Prototypes 7 to 15 days; production scheduled by volume |
Common Questions
Why a brush finish instead of polished mirror?
No. 4 at 32 CLA is the sanitary standard: fine enough to clean, rough enough to hide handling marks in service. Mirror on a large plate shows every fingerprint and scratch.
Why break every edge?
Unbroken edges trap soil and pass contamination. On sanitary equipment the chamfer is a cleanability feature, not decoration.
