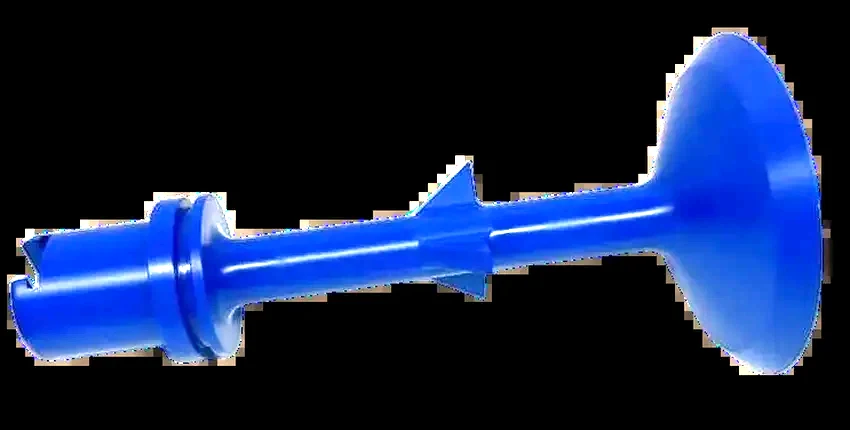

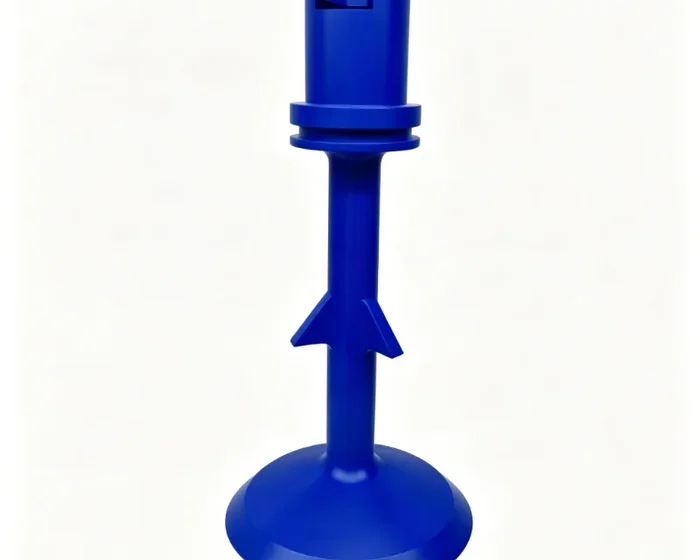

5-Axis Simultaneous Precision Fluid Machinery Components
Discover top-quality custom 5-Axis Simultaneous Precision Fluid Machinery Components from KGL Machining, a leading Manufacturer and Supplier based in China.
General Industrial Components
At KGL, we draw on our 15-year manufacturing experience to deliver high-end automation components, like food-grade POM multi-way valves and mixer blocks, with extreme dimensional accuracy and hygiene standards. We optimize every stage of production to ensure absolute consistency and reliability: D
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Specification Items | Detailed Parameter Information |
| Typical Material | Food/Medical-grade High-Performance POM |
| Dimensional & Position Tolerance | Core axis hole position and coaxiality within ±0.005mm |
| Surface Roughness | Internal fluid channel and key curved surfaces: Ra 0.4 (Mirror finish) |
| Compliance & Application | High-cleanliness multi-way fluid control valve and mixer core components |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
At KGL, we draw on our 15-year manufacturing experience to deliver high-end automation components, like food-grade POM multi-way valves and mixer blocks, with extreme dimensional accuracy and hygiene standards. We optimize every stage of production to ensure absolute consistency and reliability: Demand Analysis & DFM Support: We review 3D models to validate material traceability for strict European food safety regulations and optimize machining paths for intersecting channels. Material Stress Relief: To prevent POM from deforming due to cutting heat, we apply a customized warm-water aging process after rough machining to eliminate internal stress and secure long-term dimensional stability. 5-Axis Precision Molding: Using Mazak INTEGREX i-250H 5-axis simultaneous machining centers, we complete complex inner cavities and deep-hole surfaces in a single setup, eliminating alignment errors. High-Standard Finish: To prevent bacteria-breeding "hygiene dead zones," we use custom ultra-sharp single-crystal diamond (PCD) ball-end mills. This creates a burr-free, mirror-like surface directly from the machine, eliminating the need for manual polishing. Technical Specifications Specification Items Detailed Parameter Information Typical Material Food/Medical-grade High-Performance POM Dimensional & Position Tolerance Core axis hole position and coaxiality within ±0.005mm Surface Roughness
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include Aluminum alloys, stainless steels, brass, copper, titanium and engineering plastics; the exact grade follows your drawing. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
