Multi Step Brake Shaft in 7075-T6 with Hard Anodize, Film 0.1 mm

7075-T6 brake shaft: multi step journals, square flange with bolt circle, hard anodize film 0.1 mm with drawing tolerances held after treatment, RoHS 2.0. Quote in 24 hours.

7075-T6 Brake Shaft, Multi Step with Flange, Hard Anodized 0.1 mm

General Industrial Components

A turn mill stepped shaft with a square mounting flange for brake assemblies, hard anodized to a 0.1 mm film with post treatment tolerance verification.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

Turn-Mill Machining Surface Treatment/Anodizing

Materials

Aluminum

Key Specifications

Parameter	KGL Capability
Material	Aluminum 7075-T6, T6 tempered
Process	Turn mill machining of steps and flange, edge breaking and chamfering, hard anodize film 0.1 mm
Flange	Square mounting flange with bolt circle
Finish	Hard anodize 0.1 mm, drawing tolerances held post treatment, RoHS 2.0
Inspection	Micrometer and caliper, roughness meter, appearance, RoHS conformity
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

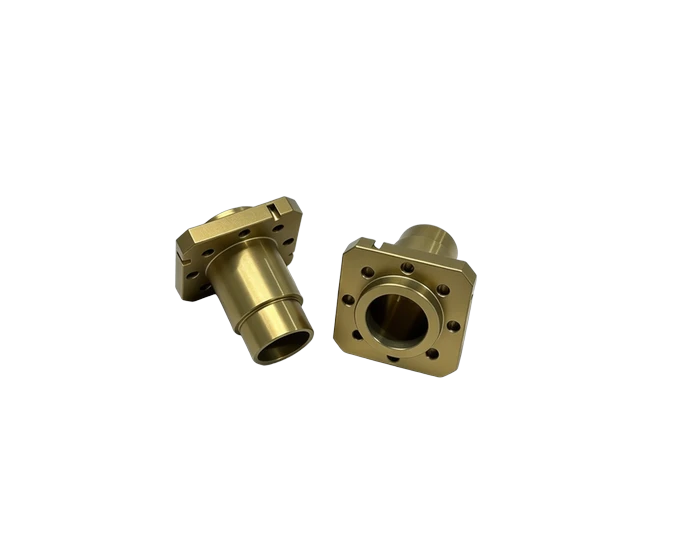

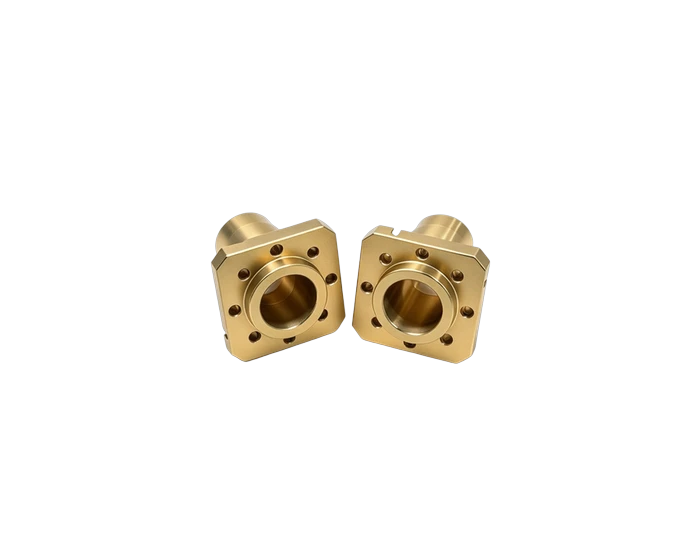

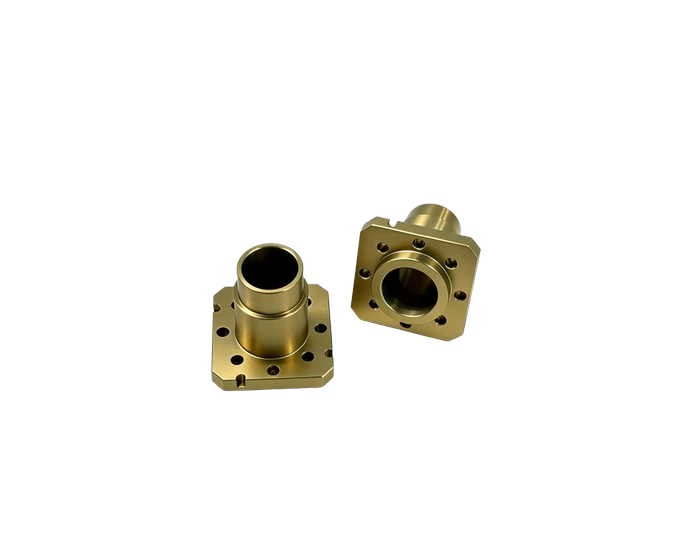

Brake shafts see cycles of clamp and release, and this one is built for the duty: multi step journals turned on a turn mill center, a square flange end milled with its bolt circle, and sharp edges broken with C0.3 default chamfers per drawing.

Hard anodize at 0.1 mm film gives the wear and corrosion surface, and the drawing note that matters most is stated plainly: tolerances are verified after oxidation. Film growth is accounted for in process, then the part is measured as shipped, so the fit you inspect is the fit you receive. RoHS 2.0 compliant.

Inspection runs micrometer and caliper on dimensions, roughness meter on the journal surfaces, visual appearance, and RoHS conformity documentation.

This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Part-Specific Advantages

Multi step journals with square flange and bolt circle
Hard anodize film 0.1 mm, tolerances verified after treatment
Sharp edges broken, C0.3 default chamfers
RoHS 2.0 compliant finish
Turn mill complete geometry in disciplined setups

Typical Applications

Brake actuator shafts in industrial and vehicle systems
Stepped flanged shafts in automation assemblies
Wear duty anodized rotating components

Commercial Terms

Commercial	Detail
MOQ	No MOQ; 1-piece prototype supported
Quote	Within 24 hours for complete 2D/3D files
Terms	EXW / FOB Shenzhen
Certifications	ISO 9001:2015
Packaging	Individual bubble wrap, export carton or wooden case
Lead Time	Prototypes 7 to 15 days; production scheduled by volume

Common Questions

Why verify tolerances after anodize?

Hard anodize adds real film thickness. Measuring after treatment is the only measurement that describes the shipped part, so that is the note on the drawing and the habit in the shop.

Why 7075 for a shaft?

Strength where the steps and keyways concentrate stress, with hard anodize covering the wear duty that steel would normally take.
