Precision Timing Sprocket, CNC Turned and Milled from Ø60 Bar Stock

Custom timing sprocket machined from Ø60 bar: minimum clearance tooth profile, integral keyway, no heat treatment, 0.39 kg. Tooth profile and dimensions inspected per part. Quote in 24 hours.

General Industrial Components

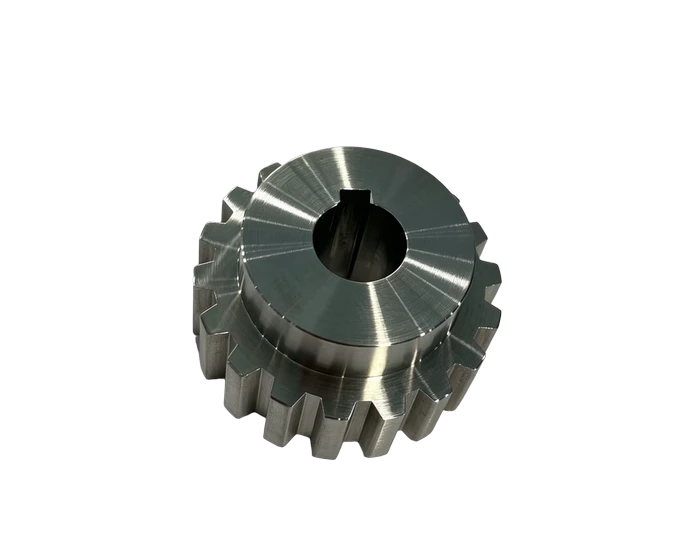

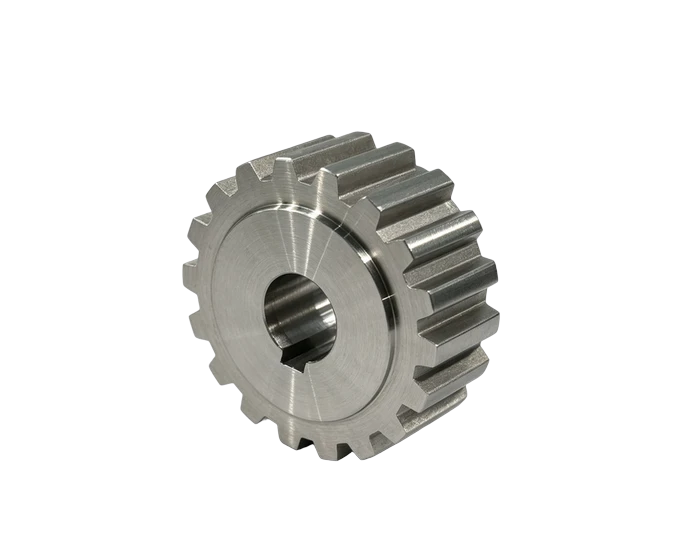

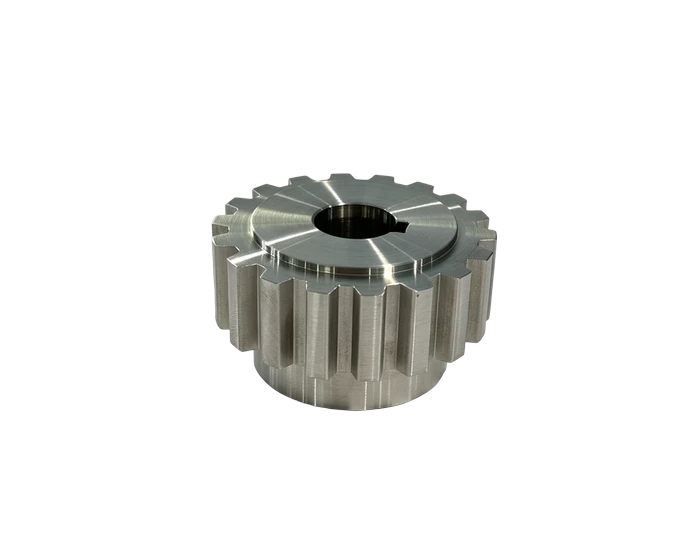

A one piece timing sprocket for precision synchronous drives, turned from bar and form milled with a minimum clearance tooth profile and keyway, ready for automation timing duty.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

CNC Turning CNC Milling

Materials

Materials/Cnc Carbon Steel

Key Specifications

Parameter	KGL Capability
Material	Carbon steel round bar Ø60
Process	CNC turning of body and hub, CNC form milling of tooth profile, keyway milling, deburring
Tooth profile	Minimum clearance profile per drawing
Keyway	Integral, torque transfer to shaft
Weight	0.39 kg
Inspection	Dimensions, tooth profile check, appearance
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

This sprocket is machined complete from Ø60 round bar: turned for the body and hub, form milled for the teeth to a minimum clearance profile that keeps the chain seated without binding, and keyway milled for shaft torque transfer. No heat treatment, per drawing, so the geometry you inspect is the geometry that ships.

One piece construction means the teeth, hub, and keyway never see assembly runout. The 0.39 kg part goes through burr removal on all edges and a dimension, tooth profile, and appearance inspection before release.

For timing duty the tooth profile is the part. The form tool path is verified against the drawing profile and each part is checked on tooth geometry and dimensions, with the drawing at 2:1 scale reference.

This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Part-Specific Advantages

Minimum clearance tooth profile, form milled full circle
Integral keyway, one piece construction, no assembly runout
Machined from Ø60 bar stock, no heat treatment
0.39 kg finished weight
All edges deburred, profile inspected per part

Typical Applications

Precision synchronous drives in automation equipment
Timing and positioning chain drives
Custom sprockets where stock catalog parts do not fit

Commercial Terms

Commercial	Detail
MOQ	No MOQ; 1-piece prototype supported
Quote	Within 24 hours for complete 2D/3D files
Terms	EXW / FOB Shenzhen
Certifications	ISO 9001:2015
Packaging	Individual bubble wrap, export carton or wooden case
Lead Time	Prototypes 7 to 15 days; production scheduled by volume

Common Questions

Why minimum clearance on the teeth?

Too much clearance lets the chain slap and hunt; the drawing profile keeps engagement snug for positioning duty. The form tool carries the profile so every tooth is the same tooth.

Why no heat treatment?

The drive loads and the tooth material at this size do not need it, and skipping treatment keeps the geometry exactly as inspected. If wear duty increases, nitriding is the upgrade path.
