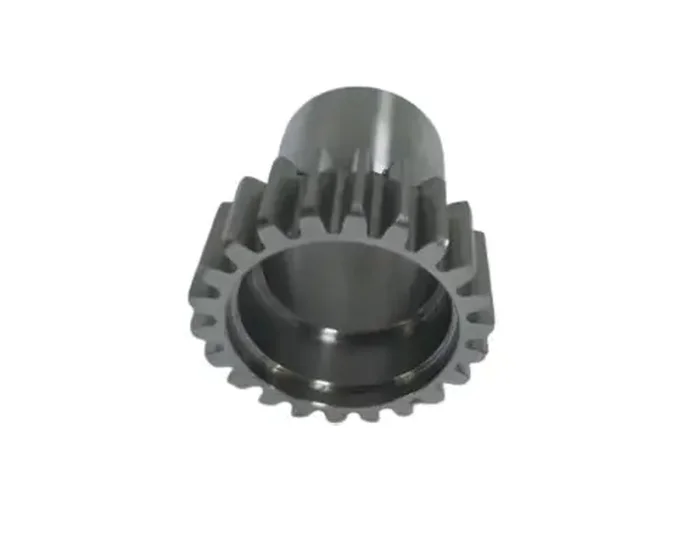

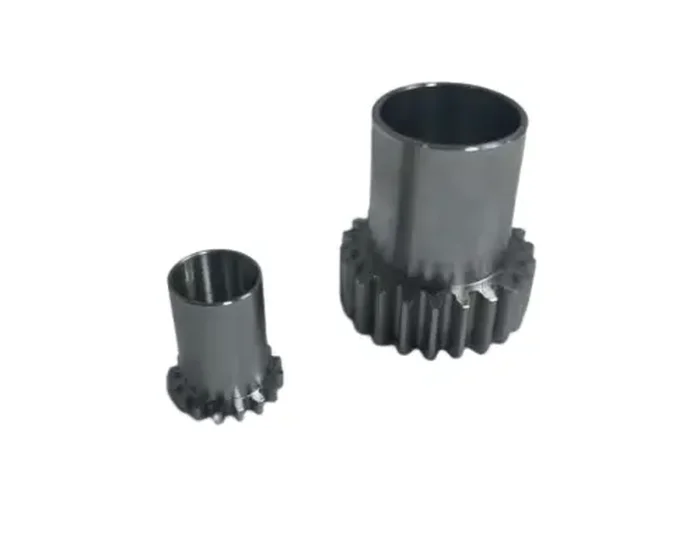

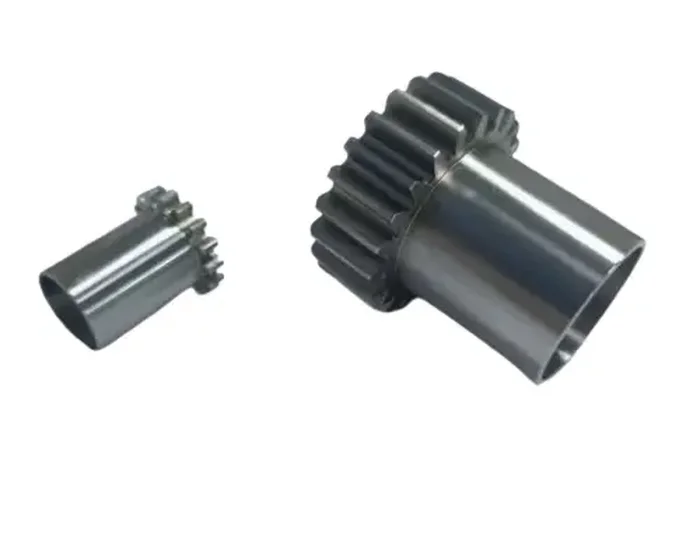

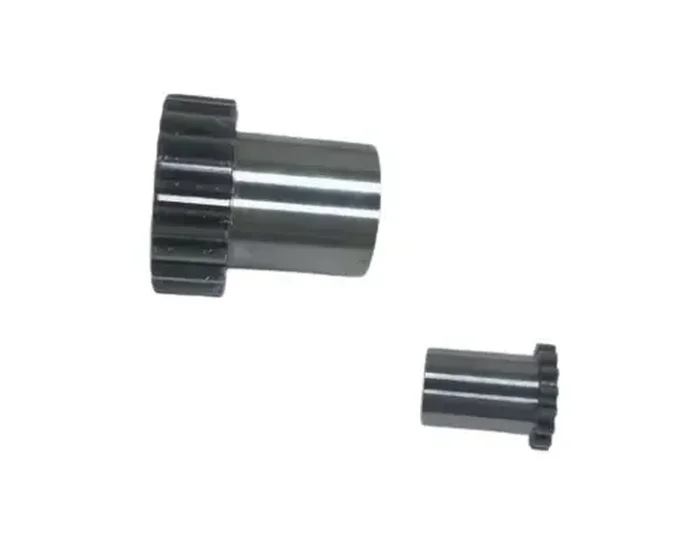

Five-axis Linkage Processing Technology - Automotive Gear Transmission Parts
Five-axis Automotive Gear Transmission Parts for superior quality and fast delivery. KGL Machining offers customizable solutions with stable performance and
General Industrial Components
The structure of Five-axis Linkage Processing Technology - Automotive Gear Transmission Parts is complex and the precision requirements are high. Especially the key components such as reducer gears, differential gears and drive shafts in new energy vehicles often have complex curved surfaces, heli
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
The structure of Five-axis Linkage Processing Technology - Automotive Gear Transmission Parts is complex and the precision requirements are high. Especially the key components such as reducer gears, differential gears and drive shafts in new energy vehicles often have complex curved surfaces, helical tooth structures and strict spatial angle requirements. Traditional processing requires multiple devices and multiple clamping to complete, which is not only inefficient, but also accumulates errors in process conversion, making it difficult to improve the product qualification rate. KGL machining's five-axis linkage processing technology can enable your products to achieve one-time clamping and all-round processing. Complex differential housings, multi-angle spline shafts, and precision modified gears do not need to be turned by multiple machines, and can be fixed in one time to complete the milling, drilling, tapping, turning and other complex processes. Eliminate repeated positioning errors, and the contour accuracy of key meshing surfaces is stable. Efficiency is doubled, the process is highly integrated, the reducer gearbox process is reduced, the time is shortened, and the yield rate is improved. Cost optimization, shortened delivery cycle, reduced investment in equipment, fixtures and sites, and lowered unit cost. Excellent application of five-axis machining technology in
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include Aluminum alloys, stainless steels, brass, copper, titanium and engineering plastics; the exact grade follows your drawing. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
