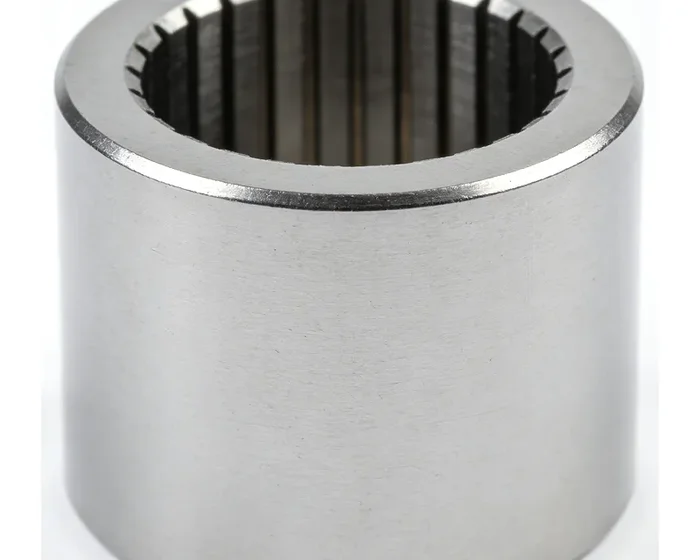

Pm Rotor Magnet Retainer
Discover top-quality custom Pm Rotor Magnet Retainer from KGL Machining, a leading Manufacturer and Supplier based in China. As a trusted Factory, we
General Industrial Components
Materials: The PM Rotor Magnet Retainer is made from high-quality materials such as titanium alloy and high-performance engineering plastics, ensuring durability and a long service life.. Machining Precision: Manufactured using Japanese five-axis machining centers, achieving ultra-high processing ac
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
Materials: The PM Rotor Magnet Retainer is made from high-quality materials such as titanium alloy and high-performance engineering plastics, ensuring durability and a long service life.. Machining Precision: Manufactured using Japanese five-axis machining centers, achieving ultra-high processing accuracy of ±0.005mm and a surface roughness of Ra0.8. Performance: Built to handle high-speed rotor operations, ensuring stable performance under extreme conditions.
Core Advantages
High Strength: Designed to withstand significant mechanical stress. Corrosion Resistance: Offers exceptional resistance to environmental wear and corrosion. Stable Magnetic Properties: Maintains consistent magnetic performance, enhancing operational efficiency and prolonging equipment life.
Quality Control
Three-Level Quality Inspection System: Ensures a qualification rate of over 99.5% for key processes, guaranteeing high product reliability. Custom Services and Production Flexibility Custom Solutions: Tailored to meet the specific needs of each client. Small Batch Production: Flexible manufacturing capabilities with a minimum order quantity of 10 pieces. Fast Turnaround: 24-hour technical support expedited sample delivery Custom Specifications: We can accommodate special orders and produce retainers with specific requirements as per customer needs. Research and Development Commitment 8% of Annual Revenue invested in R&D to continuously improve product performance and innovation. Holder of 15 processing patents, enabling cost reduction by 15%-20% for customers through advanced manufacturing techniques. Hot Tags: Pm Rotor Magnet Retainer Related Category Related Products Motor Silicon Steel Sheet Insulation Coating Components View More >>
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include Aluminum alloys, stainless steels, brass, copper, titanium and engineering plastics; the exact grade follows your drawing. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
