White Acetal POM End Head, CNC Turned to ASME Y14.5

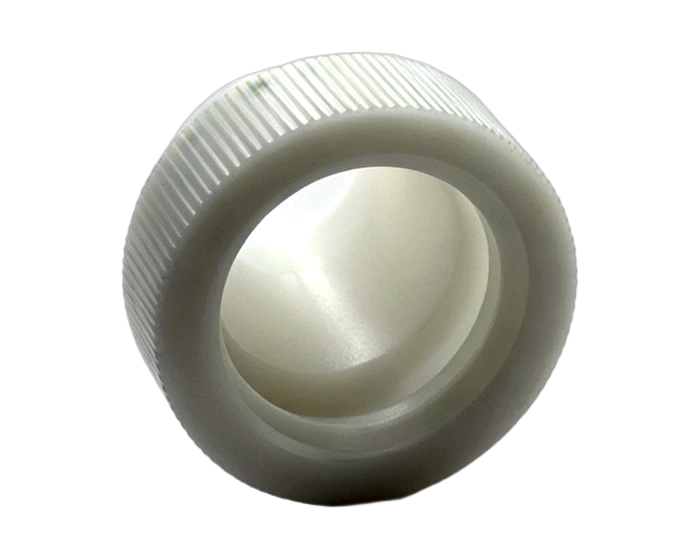

White acetal POM end head: 1.5 in OD, 0.625 in bore, 1.50 in long, 1-1/8-7 thread, all edges broken to 0.02 in, 100 percent inspected. No MOQ, quote in 24 hours.

General Industrial Components

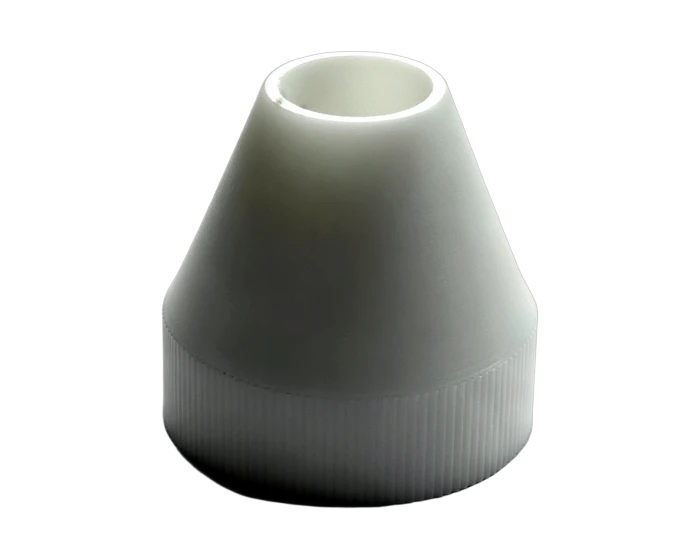

A conical white acetal (Acetron GP) end head turned from bar stock in two chuckings: 1.5 in OD, 0.625 in bore, 1-1/8-7 thread, and every edge broken to 0.02 in, inspected piece by piece before cleaning and packing.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

CNC Turning Services/Low Volume Cnc Machining

Materials

Materials Overview

Key Specifications

Parameter	KGL Capability
Material	White acetal copolymer POM, Acetron GP White (Röchling)
Process	Bar stock turning: general lathe roughing, CNC lathe finishing with second chucking; edge breaking; cleaning
Key dimensions	Bore 0.625 in; OD 1.5 in; length 1.400 in; thread 1-1/8-7
Tolerance standard	ASME Y14.5-2009; angles ±0.5 deg; fractional ±1/32 in; X.X ±0.020 in; X.XX ±0.010 in; critical ±0.005 in
Surface finish	63 Ra microinch general
Threads	Class 2
Edge condition	All internal and external edges broken to 0.02 in (0.5 mm)
Inspection	100 percent size and appearance check after turning, then cleaning
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

This end head is a simple part that punishes sloppy turning: an acetal cone with a fine external profile, a threaded bore, and surfaces that show every chatter mark. We turn it from Acetron GP white POM bar in two operations, roughing the profile on a general lathe and finishing the critical features on a CNC lathe with the part reversed for a true second-end reference.

Dimensions follow an imperial drawing to ASME Y14.5: decimal features at X.X ±0.020 in and X.XX ±0.010 in, angles at ±0.5 degrees, and a 63 Ra microinch general surface. All internal and external edges are broken to 0.02 in and the 1-1/8-7 thread is cut to Class 2 so the mating ring seats smoothly without forcing.

Acetal brings high wear resistance, self lubrication, dimensional stability, and chemical resistance, which is why it appears on fluid and dosing equipment. Every piece is inspected for size and appearance, cleaned, and packed individually.

This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Part-Specific Advantages

Acetron GP white acetal: wear resistant, self lubricating, dimensionally stable, chemical resistant
Turned in two chuckings for a true concentric profile end to end
1-1/8-7 thread to Class 2 for smooth mating
All edges broken to 0.02 in, no sharp rims
Imperial dimensions to ASME Y14.5 with 63 Ra general finish
100 percent size and appearance inspection, cleaned and individually packed

Typical Applications

End caps and heads for fluid handling and dosing equipment
Insulating and wear pads on rotary assemblies
Threaded covers and retainers on processing machinery

Commercial Terms

Commercial	Detail
MOQ	No MOQ; 1-piece prototype supported
Quote	Within 24 hours for complete 2D/3D files
Terms	EXW / FOB Shenzhen
Certifications	ISO 9001:2015
Packaging	Individual bubble wrap, export carton or wooden case

Common Questions

Why acetal instead of nylon or PTFE for this head?

Acetal holds its dimensions better than nylon in humid service, machines into crisp thread forms, and keeps the stiffness that PTFE lacks. For a threaded end head that gets assembled repeatedly, it is the practical middle of the plastics family.

Can you run this part in imperial from a US drawing?

Yes, this lot was produced exactly that way, inspected against ASME Y14.5 callouts, and shipped with records. Send the drawing and we quote within 24 hours.

What is the minimum order?

One piece. Bar stock quantities allow us to support prototypes and volume from the same process.
