Ø35 mm Adapter Valve Plate in 6061-T6, Black Anodized with Dowel Assembly
Ø35 x 8.8 mm valve adapter plate in 6061-T6: stepped bore Ø13.1 +0.04/-0.02, hole position 0.1 to datums, runout 0.1, 2X M3 threads, non metallic dowels pressed. CMM checked. Quote in 24 hours.
Medical Devices
A small circular distribution plate for bioanalysis and automation fluid assemblies. Three 120 degree patterned features, black anodize with post anodize bore control, and factory pressed non metallic dowels.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Aluminum 6061-T6, black anodized |
| Process | CNC turning of disc and stepped bore, 4 axis milling of pattern and slots, M3 threading, black anodize, dowel press assembly |
| Dimensions | Ø35 x 8.8 mm |
| Stepped bore | Ø13.1 +0.04/-0.02 mm, 5.65 +/-0.05 mm deep |
| Through holes | Ø3.5 mm, position Ø0.1 A|B|C, runout Ø0.1 D |
| Threads | 2X M3 x 0.5 6H through |
| Inspection | CMM on positions and bore, plug gauges 100 percent, microscope on anodize and dowel seating |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part

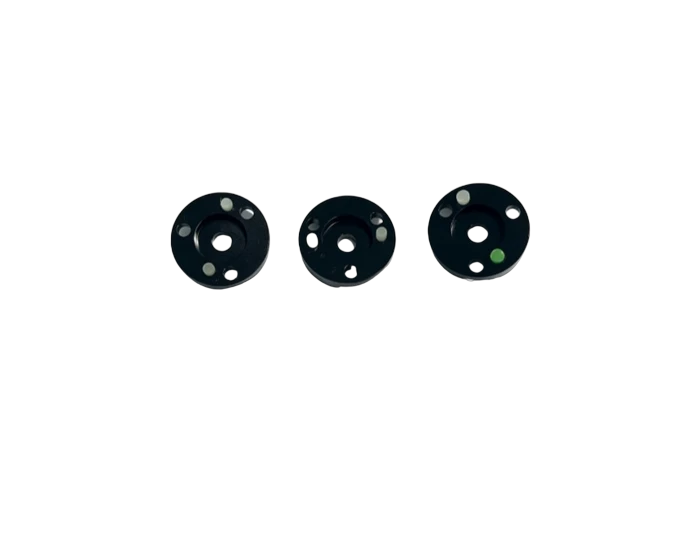

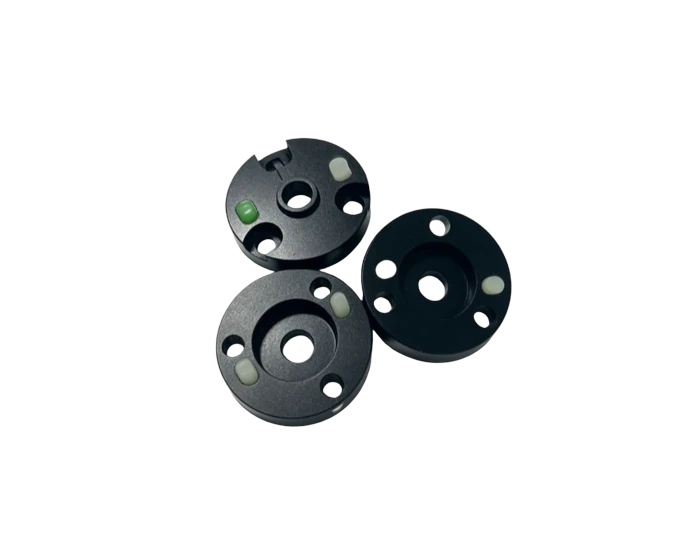

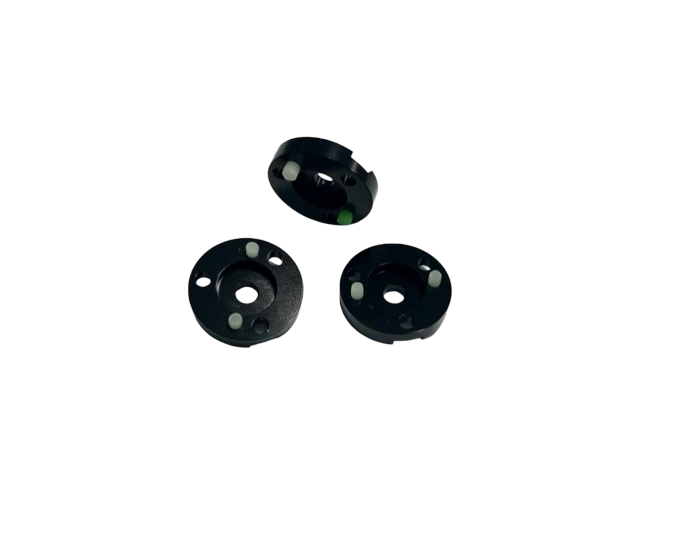

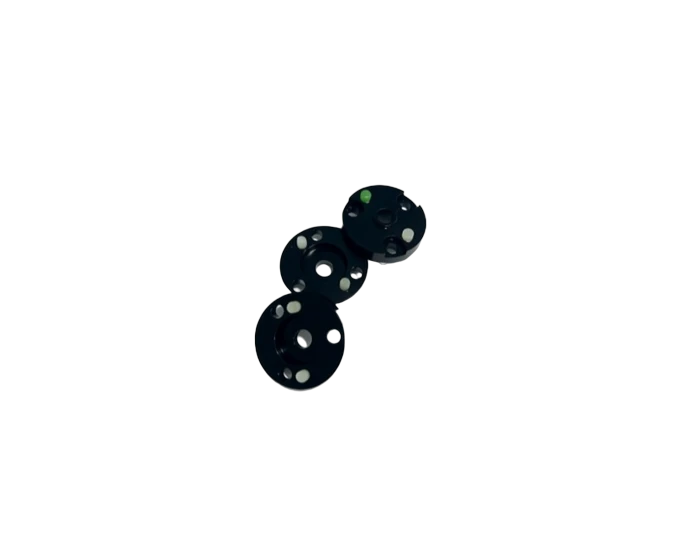

This Ø35 by 8.8 mm disc distributes flow and location between valve layers in bioanalysis hardware. The front face carries a 120 degree symmetric pattern of stepped pockets and holes; the reverse carries a deep counterbore and a central sleeve seat. The stepped bore runs Ø13.1 mm +0.04/-0.02 at 5.65 plus or minus 0.05 mm deep, and the Ø3.5 mm through holes hold position within 0.1 mm to the datums with 0.1 mm circular runout.
The part is black anodized, and anodize growth is the hidden trap on parts this small: the Ø3.5 mm holes and dowel bores are either masked or finish machined after oxidation so the class of fit survives. White and green non metallic dowels are then pressed in house with verticality controlled, so the assembly arrives ready to bolt down.
Two M3 x 0.5 6H through threads secure the plate. Inspection runs CMM on the bolt positions and stepped bore, plug gauges on the critical diameters, and a microscope sample on anodize appearance and dowel seating.
This part family supports the Medical Device Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- Stepped bore Ø13.1 +0.04/-0.02 mm, depth 5.65 +/-0.05 mm
- Hole position 0.1 mm to datums, runout 0.1 mm
- 120 degree symmetric three pocket pattern
- Non metallic dowels pressed and seated in house
- Black anodize with post anodize bore fit control
Typical Applications
- Fluid distribution plates in bioanalysis and diagnostic instruments
- Valve stack adapter plates for automation assemblies
- Small anodized discs requiring press fit dowels
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015, ISO 13485:2016 |
| Packaging | Individual bubble wrap, export carton or wooden case |
| Lead Time | Prototypes 7 to 15 days; production scheduled by volume |
Common Questions
Does anodize affect the small holes?
It does if left unmanaged. Growth of a few microns per surface is either masked out or removed by finishing the controlled diameters after oxidation, which is how the dowel press fits stay repeatable.
Why press the dowels before shipping?
Pressing in house with verticality control removes a alignment risk at the customer line. A skewed dowel in a valve stack is an assembly fault that looks like a machining fault.
