Long Mounting Cover Plate, 144 mm Class, M3 Thread and Press Holes
Aluminum mounting cover plate: 133.70 +/-0.05 width pair, M3 tapped and press holes, M2.5 countersunk, R6.75 and R4.75 end radii, 3.00 mm plate. Quote in 24 hours.
Medical Devices
A long thin mounting plate with a central square boss and window, end radius layout, and a mixed tapped, press fit, and countersunk hole pattern for equipment panels.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Aluminum alloy, anodized per drawing |
| Process | CNC milling of outline and datums, radius and slot milling, M3 tapping and press hole work, M2.5 countersinking, deburring, anodize |
| Widths | 133.70 +/-0.05 (2X), 19.25 / 25.00 / 30.75 +/-0.05 (2X) |
| Radii | R6.75 +/-0.05 (2X), R4.75 +/-0.05 (2X) |
| Holes | M3 tapped through, M3 x 4 press, M2.5 countersunk |
| Thickness | 3.00 mm |
| Inspection | Caliper and micrometer, CMM on hole positions, thread gauges, appearance |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
This long thin plate is a panel workhorse: 133.70 plus or minus 0.05 mm width pairs, 19.25, 25.00, and 30.75 plus or minus 0.05 mm feature bands, end radii at R6.75 and R4.75 plus or minus 0.05, and 3.00 mm plate thickness. The drawing carries a 50 plus or minus 0.1 dimension across a 144.2 mm span direction.

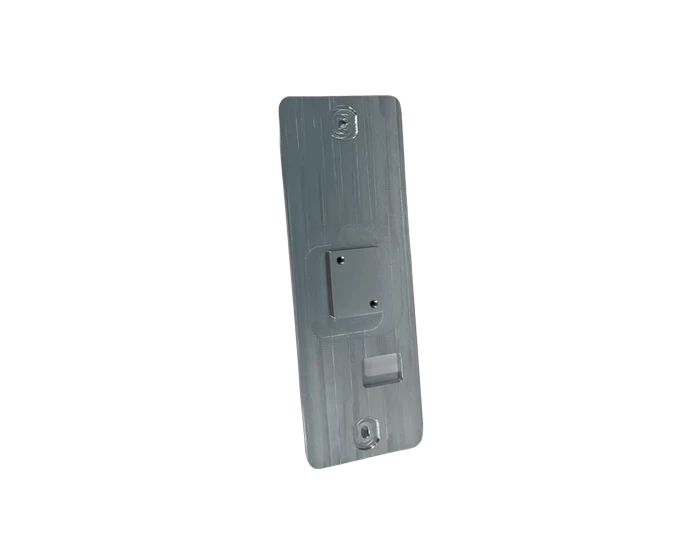

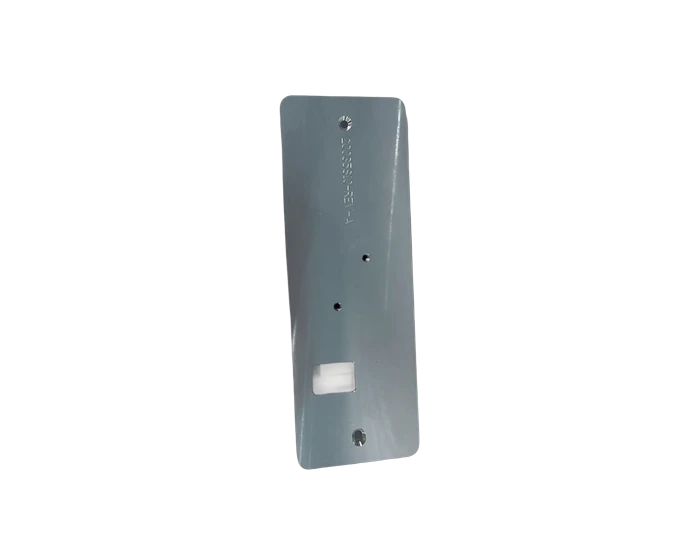

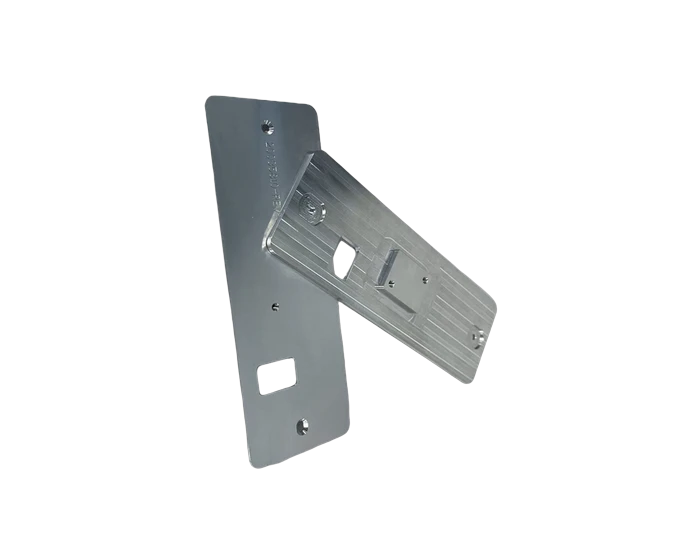

The hole field mixes three fits: M3 tapped through holes, M3 x 4 press holes for pins, and M2.5 countersunk holes for flush hardware. A central square boss with a square window adds stiffness and a locating feature without giving up the thin section.
Process is CNC milling of outline and datum edges, radius and slot work, drilling and tapping of the hole field, deburring, then anodize per drawing. Inspection runs caliper and micrometer, CMM on hole positions, thread gauges, and appearance.
This part family supports the Medical Device Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- 133.70 +/-0.05 width pairs, 3.00 mm plate
- M3 tapped and press holes plus M2.5 countersunk pattern
- R6.75 and R4.75 end radii, +/-0.05
- Central square boss with window for stiffness and location
- Anodized per drawing
Typical Applications
- Equipment panel mounting plates
- Automation module covers and baseplates
- Sensor and rail mounting connection plates
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015, ISO 13485:2016 |
| Packaging | Individual bubble wrap, export carton or wooden case |
| Lead Time | Prototypes 7 to 15 days; production scheduled by volume |
Common Questions
Why mix tapped, press, and countersunk holes on one plate?
Each fit has a job: threads for removable hardware, press holes for located pins, countersinks for flush heads. One plate, three kinds of fastening, all held to position.
How does the plate stay flat at 3 mm?
Stress relieving passes and symmetric machining, plus the boss which doubles as a stiffener across the span.
