Medical Devices Surgical Light Multi-axis Adjustment Mechanism

Discover top-quality custom Medical Devices Surgical Light Multi-axis Adjustment Mechanism from KGL Machining, a leading Manufacturer and Supplier based in

Medical Devices

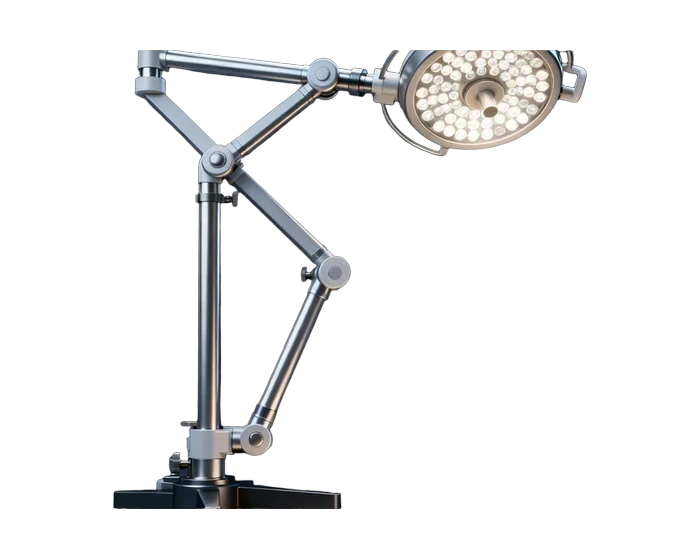

The photos show a complete surgical light suspension arm assembly; KGL machines the multi-axis adjustment mechanism inside it, including joint blocks, arm links, and brake components, built for high-end operating rooms, endoscopic centers, and mobile surgical units.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

5-Axis CNC Machining CNC Milling CNC Turning

Materials

Aluminum Stainless Steel Titanium Engineering Plastics

Key Specifications

Parameter	KGL Capability
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Process	5-axis CNC milling, 3+2 milling, CNC turning, EDM as required
Inspection	Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

The photos show a complete surgical light suspension arm assembly. Inside that assembly, KGL machines the multi-axis adjustment mechanism itself: joint blocks, arm links, pivot pins, and friction brake components that let surgical teams set angle and position quickly and hold them steady through long procedures. Parts are machined from aluminum and stainless steel, anodized or passivated as specified, and assembled-function tested on request.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Commercial Terms

Commercial	Detail
MOQ	No MOQ
Quote turnaround	24 hours for complete 2D/3D files
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Standard tolerance	±0.005 mm
Precision tolerance	±0.005 mm on critical features
Inspection	Hexagon / Zeiss CMM + first-article reports

Common Questions

Which materials can this part be machined from?

Common options include 316L/304 stainless steel, titanium (TC4 / Grade 5), 6061/7075 aluminum and medical-grade plastics such as PEEK. Send your drawing and we confirm material availability and stock within 24 hours.

What tolerances can you hold?

Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.

How fast can I get first samples?

You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.

What quality documentation comes with the parts?

Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.

Is there a minimum order quantity?

No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
