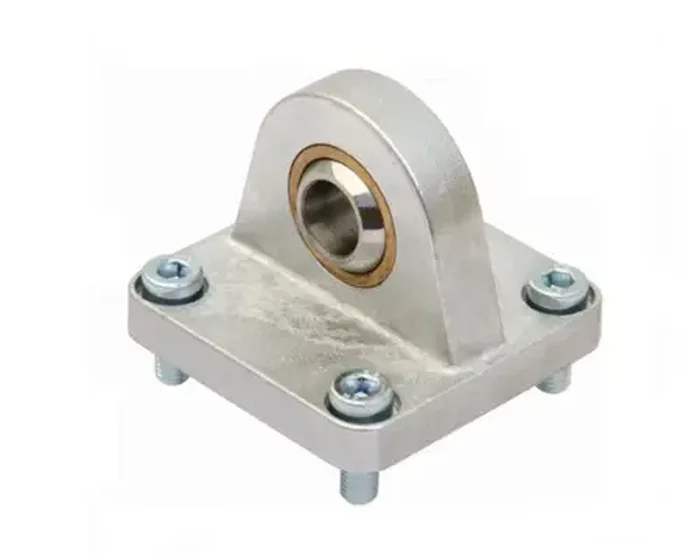

Pneumatic Actuator Shielding Bracket
Pneumatic Actuator Shielding Bracket by KGL Machining offers reliable protection and easy installation. Contact us for bulk orders at competitive prices.
Robotics & Humanoid Robots
The pneumatic actuator shielding bracket is used for mechanical support, firmly fixes the pneumatic actuator and valve, and withstands the impact force and seismic load of opening and closing; it can be used for radiation shielding, and integrates high-density materials to block radiation; it can
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
The pneumatic actuator shielding bracket is used for mechanical support, firmly fixes the pneumatic actuator and valve, and withstands the impact force and seismic load of opening and closing; it can be used for radiation shielding, and integrates high-density materials to block radiation; it can protect equipment and extend the service life of the actuator. The following is an introduction to high-quality pneumatic actuator shielding brackets, hoping to help you better understand pneumatic actuator shielding brackets.
Material selection
Our pneumatic actuator shielding bracket is made of 304/316L nuclear grade stainless steel, which is more corrosion-resistant. The shielding layer is made of lead-antimony alloy, and the lead surface is anodized with aluminum to prevent the spread of oxidized dust. The connector uses high-strength alloy steel.
Precision machining process:
Our pneumatic actuator shielding bracket adopts CNC milling, face milling to process the installation surface, contour milling to form the external curved surface by five-axis linkage, and cavity milling to cut the lead shielding groove in layers. Then fine-process the bearing hole, positioning pin hole, thread bottom hole, etc. Finally, carry out size inspection, appearance inspection, deburring, and surface treatment according to customer requirements.
Surface treatment technology:
The pneumatic actuator shielding bracket is sandblasted to improve the adhesion of the coating, and then chemical nickel is plated to prevent the wet and hot corrosion of the nuclear island, and finally anodized for insulation and radiation absorption.
Core advantages
The pneumatic actuator shielding bracket has good protection performance, hard core radiation resistance, extremely low leakage, strong durability, and high operation and maintenance efficiency. We provide you with professional services and preferential prices. If you are interested in pneumatic actuator shielding bracket products, please contact us. We follow the principle of "quality assurance, price conscience, and dedicated service". Hot Tags: Pneumatic Actuator Shielding Bracket Related Category Related Products Spent Fuel Cask Shock Absorber View More >> Drive Shaft Core View More >>
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include 6061/7075 aluminum, stainless steel, 45 steel and engineering plastics. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
