AGT-MT-APC Optical Interface Body, Turn-Mill Machined SUS303
AGT-MT-APC optical interface body in SUS303: OD 11.6 mm at ±0.02 mm, 40 degree end chamfer, tapered bore, 5-axis milled features, marked per drawing. Quote within 24 hours.
Semiconductor & Optics

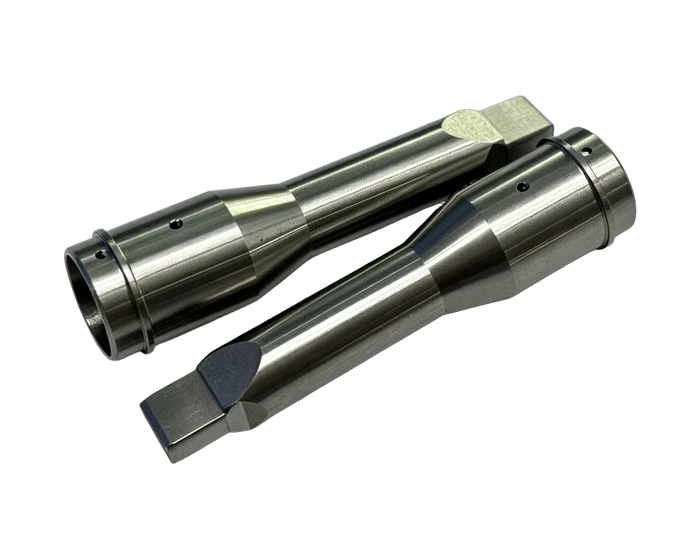

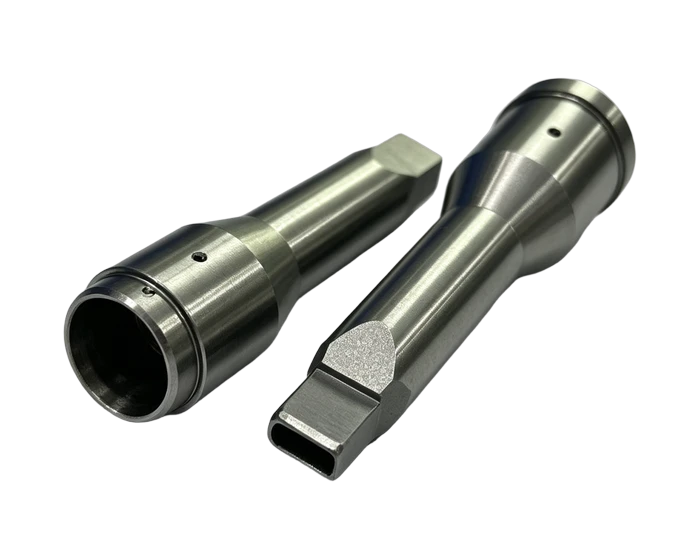

A compact AGT-MT-APC optical interface body turned and 5-axis milled from SUS303 bar stock: OD 11.6 ±0.02 mm, a 40 degree end chamfer, a tapered precision bore, and marking per the drawing, cleaned and packed for fiber optic assemblies.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Stainless steel SUS303 bar (design grade SUS304) |
| Process | CNC turning in three steps (rough and cut off, datum B finishing, tailstock finishing with 40 degree end chamfer); 5-axis milling of formed features and tapered bore; marking; hand deburring; cleaning and packing |
| Key dimension | OD 11.6 ±0.02 mm |
| General tolerance | GB/T 1804-f: 0.5 to 6 mm ±0.05; >6 to 30 mm ±0.10; >30 to 120 mm ±0.15 |
| Geometry | 40 degree end chamfer; tapered internal bore; datum B finished face |
| Surface | Free of burrs, scratches, dents, and voids |
| Marking | Per drawing specified font and location |
| Inspection | 100 percent size, appearance, and marking check; final recheck after deburring |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part

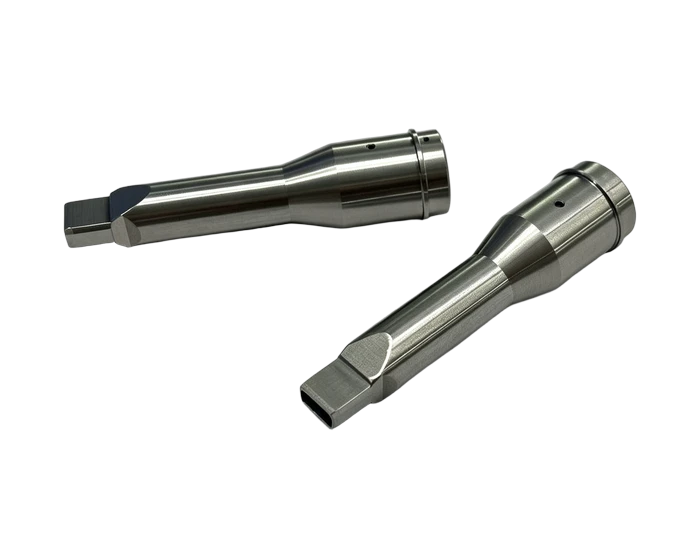

Fiber optic interfaces shrink every year, and this AGT-MT-APC body packs a tapered precision bore, a controlled 40 degree end chamfer, and external turned features into 11.6 mm of diameter. The route splits the work where each machine is strongest: CNC turning roughs and finishes the external profile and datum face B, then a five-axis mill cuts the formed features and the tapered internal bore in one fixture.
The outside diameter is held at 11.6 ±0.02 mm, general features follow GB/T 1804-f, and star marked dimensions get dedicated process control. Every edge is deburred by hand under inspection, leaving a surface free of nicks, scratches, or handling marks, with the drawing specified marking applied and verified.
SUS303 cuts cleaner than 304, which matters when the part is this small: threads and chamfers come off crisp, and the free machining grade still carries the corrosion resistance a fiber optic assembly needs. Finished bodies are washed, inspected, and packed individually.
This part family supports the Semiconductor Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- OD 11.6 ±0.02 mm with star marked dimensions under dedicated control
- 40 degree end chamfer and tapered precision bore cut in one 5-axis fixture
- Datum B face turned true before milling for accurate feature transfer
- SUS303 free machining stainless for crisp small part geometry
- Marking per drawing, verified after machining
- Hand deburred and inspected surfaces, cleaned and individually packed
Typical Applications
- AGT-MT-APC fiber optic connector bodies and adapters
- Optical transceiver and sensing module interfaces
- Precision stainless sleeves for communication equipment
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
Common Questions
Why SUS303 when the design calls for 304?
303 machines significantly cleaner at this size, which keeps the small chamfers and tapered bore crisp and burr free. It keeps the corrosion resistance of an austenitic stainless; where the drawing strictly requires 304, we run 304 and adjust the process.
Can you hold ±0.02 mm on a diameter this small in volume?
Yes. The OD is finished in a dedicated turning step with in-process gauging, and the star marked dimensions are tracked lot by lot with 100 percent final checks.
Do you apply the marking in house?
Yes, marking is applied per the drawing font and position and then verified during the final inspection before packing.
