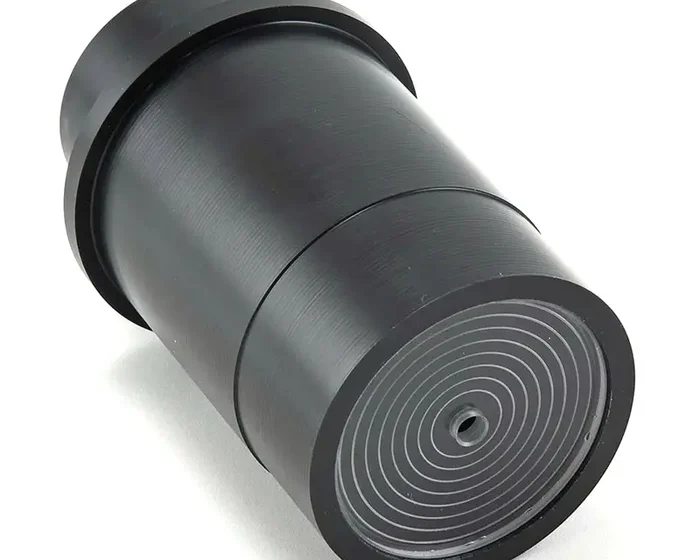

Laser Collimator Adjustment Seat
KGL Machining provides high-quality laser collimator adjustment seats with fast delivery and custom options to ensure precise alignment. Solve issues like
Semiconductor & Optics
The main body material of the laser collimator adjustment seat is aviation aluminum alloy. The lightweight design ensures load-bearing rigidity while being suitable for CNC molding of complex structures.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
The main body material of the laser collimator adjustment seat is aviation aluminum alloy. The lightweight design ensures load-bearing rigidity while being suitable for CNC molding of complex structures. Choose the aluminum alloy adjustment seat machined by KGL to balance performance and weight. It is made of stainless steel, which is suitable for special application scenarios with high loads or corrosive environments. The adjustment screw is made of 440C stainless steel, which is wear-resistant and deformation-resistant. Guide rails and bearings use ceramic balls or hardened steel to reduce friction hysteresis. Order KGL machined laser collimator adjustment seat, we will perform professional surface treatment process according to your specific requirements. To meet the needs of different environments, KGL machined laser collimator adjustment seat can provide a variety of surface treatment methods. Hard anodizing can improve surface hardness and wear resistance, suitable for the main shell and guide rail surface. Black chemical nickel plating can be matte, anti-reflective and anti-corrosion, suitable for internal moving parts. Teflon coating reduces friction coefficient, suitable for screw and guide rail contact surface. Passivation treatment improves the corrosion resistance of stainless steel parts, suitable for stainless steel screws and retaining rings. Choose KGL machini
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include 6061/7075 aluminum, stainless steel 316/304, brass and engineering plastics such as PEEK and POM. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
