Linear Motor Stator Mounting Bracket
Discover top-quality custom Linear Motor Stator Mounting Bracket from KGL Machining, a leading Manufacturer and Supplier based in China. Welcome to contact
Semiconductor & Optics
Linear Motor Stator Mounting Bracket Manufacturer | KGL Machining As a professional Linear Motor Stator Mounting Bracket manufacturer and supplier, KGL Machining specializes in providing high-precision, customizable linear motor stator mounting bracket solutions for industrial automation, robotics
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Item | Specification |
| Processing Type | CNC Precision Machining |
| Available Materials | Aluminum Alloy / Stainless Steel / Carbon Steel / Titanium Alloy |
| Machining Accuracy | ±0.005 mm standard; ±0.002 mm on critical features after DFM review |
| Surface Roughness | Ra ≤ 0.8 μm |
| Structural Design | Integrated One-Piece Machining |
| Mounting Method | Bolt Fixing / Customized Mounting Holes |
| Surface Treatment | Anodizing / Sandblasting / Polishing / Custom Treatment |
| Corrosion Resistance | High, suitable for industrial and automation environments |
| Vibration Resistance | Excellent, designed for high-frequency reciprocating motion |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Process | 5-axis CNC milling, 3+2 milling, CNC turning, EDM as required |
| Inspection | Hexagon / Zeiss CMM with 0.0015 mm accuracy, full first-article reports |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part

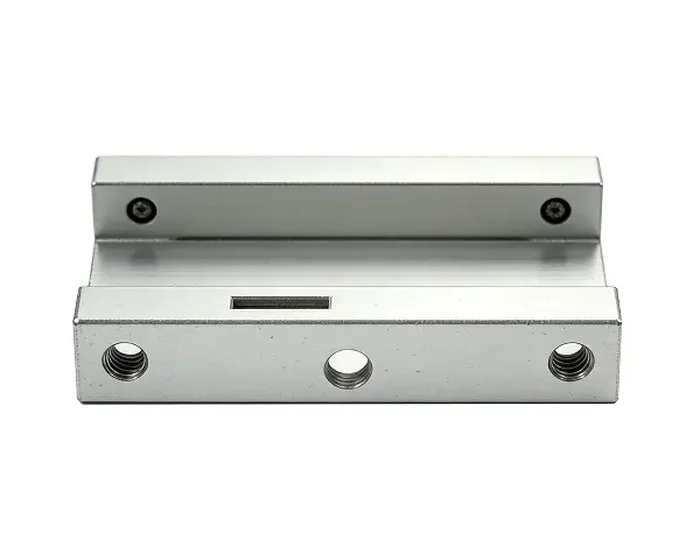

Linear Motor Stator Mounting Bracket Manufacturer | KGL Machining As a professional Linear Motor Stator Mounting Bracket manufacturer and supplier, KGL Machining specializes in providing high-precision, customizable linear motor stator mounting bracket solutions for industrial automation, robotics, and optoelectronic equipment. This product features a one-piece molded structure design, combined with surface treatment processes such as anodizing and sandblasting, ensuring excellent structural stability and durability even in high-frequency motion environments. Deep customization is available based on motor model and installation space, with a minimum order quantity of just 10 pieces, catering to both R&D prototyping and mass production needs. Product Structure and Performance Advantages
Integrated Molding Structure Design
KGL Machining's Linear Motor Stator Mounting Bracket utilizes a one-piece CNC machining process, effectively reducing assembly errors inherent in traditional multi-part designs: Reduces assembly deviations, improving linear motor operating accuracy Strong structural rigidity, capable of withstanding high-frequency reciprocating motion impacts Enhances long-term equipment stability and reduces maintenance costs
High Strength and Durability
To meet the stringent reliability requirements of high-end equipment, this mounting bracket is manufactured with strict control over material selection and machining accuracy:
Excellent vibration and fatigue resistance
Suitable for long-term use under high-speed and high-load conditions Effectively prevents stator displacement or structural loosening problems
Surface Treatment
Anodizing: Enhances corrosion resistance Sandblasting: Improves surface consistency and assembly fit Other surface treatment processes can be customized according to your needs
Technical Specifications
Item Specification Processing Type CNC Precision Machining Available Materials Aluminum Alloy / Stainless Steel / Carbon Steel / Titanium Alloy Machining Accuracy ±0.005 mm standard (±0.002 mm on critical features, DFM reviewed) Surface Roughness Ra ≤ 0.8 μm Structural Design Integrated One-Piece Machining Mounting Method Bolt Fixing / Customized Mounting Holes Surface Treatment Anodizing / Sandblasting / Polishing / Custom Treatment Corrosion Resistance High, suitable for industrial and automation environments Vibration Resistance Excellent, designed for high-frequency reciprocating motion Compatible Motor Type Linear Motor Stator (customized according to motor model) Size Range Customized according to drawings or samples Tolerance Standard ISO 2768 or customer-specified requirements Minimum Order Quantity (MOQ) 10 pcs Sample Lead Time Scheduled per program Mass Production Lead Time 7-15 days (depending on order quantity) Quality Certifications ISO 9001 / ISO 13485 Our Factory | Manufacturing Capabilities
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ |
| Quote turnaround | 24 hours for complete 2D/3D files |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Standard tolerance | ±0.005 mm |
| Precision tolerance | ±0.005 mm on critical features |
| Inspection | Hexagon / Zeiss CMM + first-article reports |
Common Questions
Which materials can this part be machined from?
Common options include 6061/7075 aluminum, stainless steel 316/304, brass and engineering plastics such as PEEK and POM. Send your drawing and we confirm material availability and stock within 24 hours.
What tolerances can you hold?
Standard tolerance is ±0.005 mm on metals, engineering plastics, and carbon fiber composite. Every dimension is verified against the 3D model on Hexagon or Zeiss CMMs.
How fast can I get first samples?
You receive engineering feedback with the quotation, within 24 hours of sending a drawing. Prototype parts are typically machined in 15 to 25 days depending on geometry and finishing.
What quality documentation comes with the parts?
Each shipment can include a first-article inspection report, dimensional CMM report, and material certificates. KGL is certified to ISO 9001:2015, ISO 13485:2016 and AS9100D.
Is there a minimum order quantity?
No. KGL supports 1-piece prototypes through volume production on 100+ CNC machines, so you can start small and scale the same process.
