LPM Cable Clip in 6061, Turn Mill and Milled, Black Oxidized

6061 cable clip for optical power meters: 18 mm overall, M4 through hole, Ø4.3 bore, controlled star marked dimensions, 180 grit blast and black finish. Quote in 24 hours.

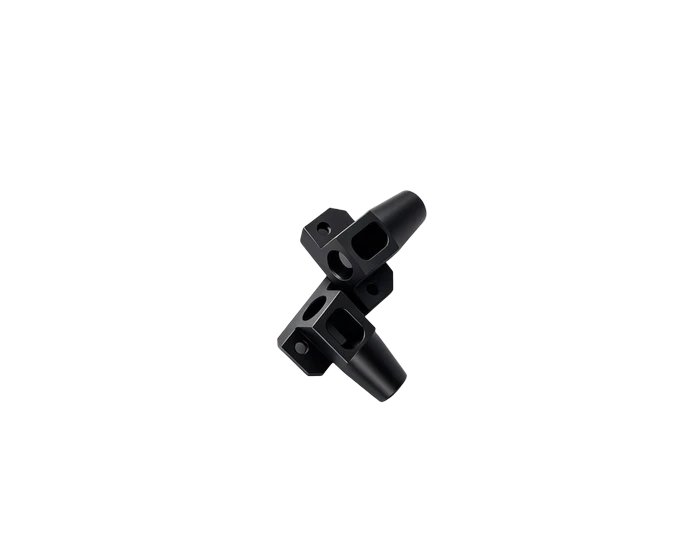

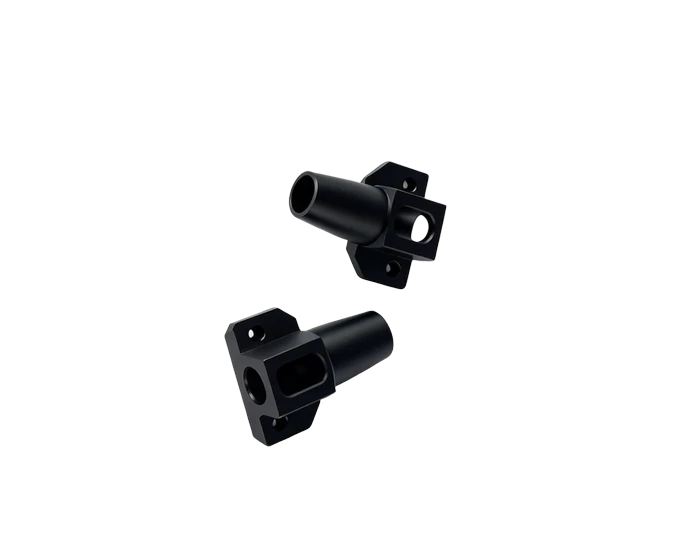

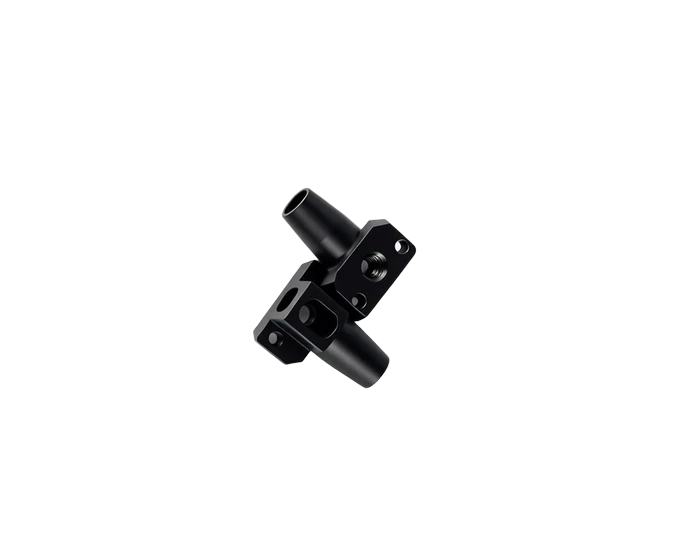

Optical Power Meter Cable Clip, 6061 Turn Mill Machined, 18 mm Long

Semiconductor & Optics

A compact turn mill composite clip that holds the cable on optical power meter instruments, with controlled critical dimensions and a uniform blast and oxidized finish.

Custom to drawing±0.005 mm standard toleranceQuote in 24 hNo MOQISO 9001 · ISO 13485 · AS9100D

Request a Quote for This Part

Or email drawings to kgl@kglmfc.com

Relevant Capabilities

Turn-Mill Machining

Materials

Aluminum

Key Specifications

Parameter	KGL Capability
Material	Aluminum 6061
Process	CNC turning plus milling (turn mill), deburring, 180 grit bead blast, black oxidation
Dimensions	18 mm overall, M4 through, Ø4.3 mm bore
Chamfer and class	C0.2 unmarked, GB/T 1804 f
Inspection	Dimension with star marked criticals, appearance, coating check
Tolerance	±0.005 mm standard on metals, engineering plastics, and carbon fiber composite
Certifications	ISO 9001:2015, ISO 13485:2016, AS9100D
Capacity	100+ CNC machines including 11 five-axis centers
MOQ	No MOQ; 1-piece prototypes supported
Quote	Within 24 hours for complete 2D/3D files

About This Part

This 18 mm clip is a two process part: turned features and milled features on the same body, which is why it runs turn mill in one setup. The M4 through hole and Ø4.3 mm bore carry the cable and fixing hardware, and the drawing star marks the dimensions that get full control.

Finish is 180 grit bead blast plus black oxidation. Two production notes from the drawing shape the process: the machining and surface treatment must stay with one supplier to protect the critical fits, and the anodize rack contact points must not show bare spots on the visible surfaces, so rack placement is designed around the appearance zones.

Unmarked chamfers are C0.2 and unmarked tolerances follow GB/T 1804 f class. Inspection is dimension with emphasis on the star marked items, appearance, and coating check.

This part family supports the Optical / Semiconductor Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.

Why Machine It at KGL

Five-Axis Fleet

100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.

Verified Accuracy

±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).

Fast Prototypes

Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.

One Supplier, End to End

Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.

Part-Specific Advantages

18 mm overall with M4 through hole and Ø4.3 mm bore
Star marked critical dimensions under full control
180 grit blast plus black oxidize, no rack marks on visible faces
Single supplier machining plus finishing for fit consistency
Turn mill one setup composite body

Typical Applications

Cable fixing clips on optical power meters
Optoelectronic instrument cable management parts
Small turn mill composite components

Commercial Terms

Commercial	Detail
MOQ	No MOQ; 1-piece prototype supported
Quote	Within 24 hours for complete 2D/3D files
Terms	EXW / FOB Shenzhen
Certifications	ISO 9001:2015
Packaging	Individual bubble wrap, export carton or wooden case
Lead Time	Prototypes 7 to 15 days; production scheduled by volume

Common Questions

Why must machining and finishing stay with one supplier?

The critical fits depend on both operations. Splitting them puts the tolerance stack across two vendors' hands; keeping them together keeps the fit on one process.

What is a rack mark and why does it matter here?

Anodize racks leave contact points. On a visible instrument part those points read as defects, so rack placement is engineered around the appearance zones.
