LJM Thin Cover Plate for Optical Power Meters, Ø50 x 1.5 mm
Ø50 x 1.5 mm thin optical power meter cover in 6061: 3X M2 threads, 120 grit bead blast plus black anodize, C0.3 default chamfers, GB/T 1804 f. Quote in 24 hours.
Semiconductor & Optics

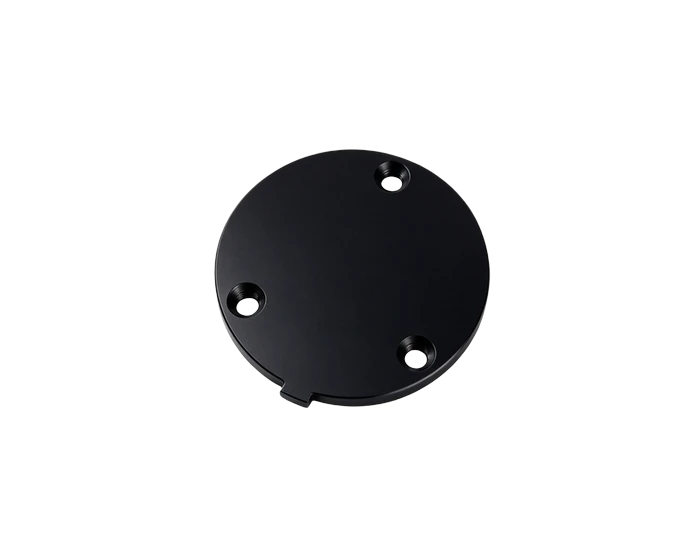

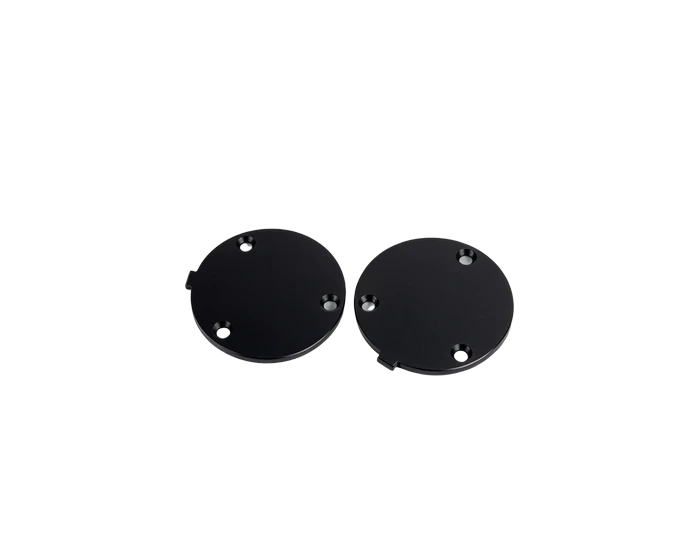

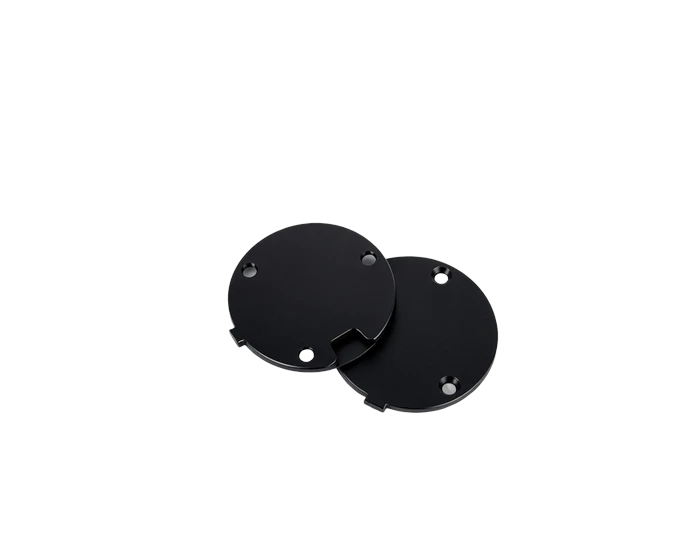

A wafer thin circular cover for optical power meter housings, milled flat with a small thread pattern and an even blast and anodize finish.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Aluminum 6061 |
| Process | CNC milling, deburring, 120 grit bead blast, black anodize |
| Dimensions | Ø50 x 1.5 mm |
| Threads | 3.5X M2 positions |
| Chamfer | C0.3 unmarked, GB/T 1804 f class |
| Inspection | Dimension, appearance, and coating verification |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
At Ø50 by 1.5 mm, this cover is a flatness problem wearing a disc costume. Thin discs warp when you look at them, so the plate is milled with light symmetric passes and held flat through finishing. The face must come through clean: no burrs, scratches, dents, or missing material, per the drawing appearance note.
Three and a half M2 positions carry the closure threads, with C0.3 default chamfers and GB/T 1804 f class for unmarked dimensions. The finish is 120 grit bead blast plus black anodize, which evens out on thin parts only if the blast media and timing are consistent, so the process runs automatic blasting with fixed parameters.
Inspection is dimension, appearance, and coating check, with the appearance and finish uniformity as the practical acceptance surface.
This part family supports the Optical / Semiconductor Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- Ø50 x 1.5 mm thin disc, warp controlled
- 3X M2 closure threads, C0.3 default chamfers
- 120 grit bead blast plus black anodize, uniform appearance
- Surface free of burrs, scratches, and impact marks
- GB/T 1804 f class unmarked dimensions
Typical Applications
- Optical power meter housing covers
- Thin closure discs for optoelectronic instruments
- Cosmetic black anodized instrument plates
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
| Lead Time | Prototypes 7 to 15 days; production scheduled by volume |
Common Questions
How do you keep a 1.5 mm disc flat?
Symmetric light passes, proper backing, and no aggressive clamping. Thin parts remember every stress you put into them.
Why does the blast finish matter on a cover?
Blast and anodize are the visible surface of the instrument. Uniform media and parameters are what keep 50 discs looking like one part.
