431.8 mm Blue POM Guide Rail with Half Round Flow Channel
Blue POM guide rail 431.8 mm (17.00 in): half round channel at +/-0.005 in, end locating bores Ø1.505 and Ø1.872 in with .008/.010 in positions, straightness held. Quote in 24 hours.
General Industrial Components

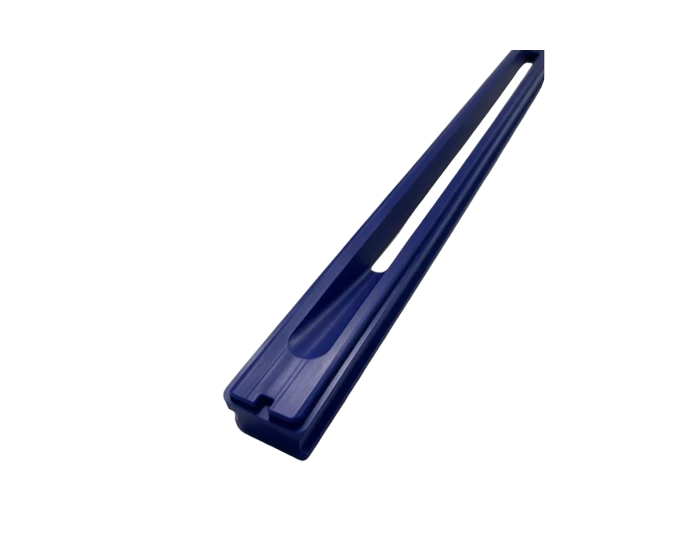

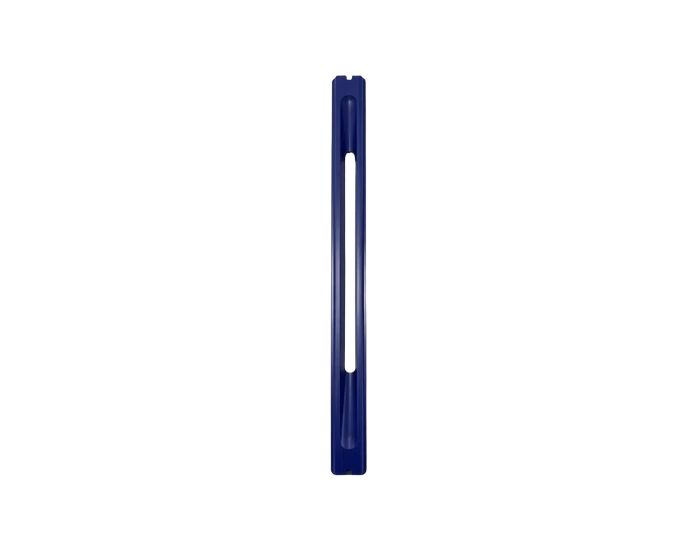

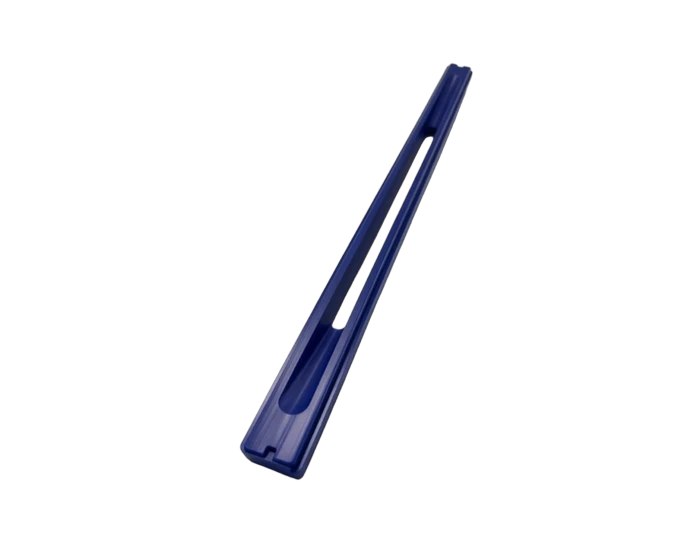

A long slender blue acetal rail with a deep half enclosed channel and a center through window, form milled full length for conveyor and automation track duty.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Blue POM (polyacetal) |
| Process | 4 and 5 axis gantry milling with vacuum fixturing, staged channel roughing and finishing, flip finish of base and end features, full length micro deburring, stress relief and drying |
| Dimensions | 431.8 mm (17.00 in) x 20 x 15 mm approx |
| Channel | Half round, +/-0.005 in, straight bottom |
| Locating bores | Ø1.505 +/-0.002 in, Ø1.872 +/-0.001 in, position .008 / .010 in to A |
| Length tolerance | +/-0.010 in overall |
| Inspection | Gantry CMM on length, bore positions, channel straightness; straightedge and gauges on the rail |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
At 431.8 mm long and slender, this blue POM rail is a material behavior problem as much as a machining one. Acetal releases stress as you cut it, so the channel and window are roughed and finished in staged passes on vacuum fixturing, holding the overall length at plus or minus 0.010 in and the channel geometry at plus or minus 0.005 in.
The half enclosed round channel runs the full length for flow or cable guidance, with a center through window along the rail. The ends carry precision locating bores and cutouts at Ø1.505 plus or minus 0.002 in and Ø1.872 plus or minus 0.001 in, positioned at .008 and .010 in to datum A, so rails splice cleanly on long tracks.
Chip control is the other half of the job: POM packs heat and the deep channel hides burrs. Sharp geometry, controlled engagement, and a full length deburring pass keep the channel clean. The gantry CMM checks length, bore positions, and channel straightness end to end.
This part family supports the Industrial Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- Half round channel at plus or minus 0.005 in over 17 in
- End locating bores Ø1.505 +/-0.002 in and Ø1.872 +/-0.001 in
- Overall length plus or minus 0.010 in, straightness controlled
- Blue POM acetal, clean channel with no packed burrs
- Splice ready ends for long track layouts
Typical Applications
- Guide and flow rails in conveyor and automation tracks
- Cable or product guidance channels in equipment frames
- Long polymer slide rails with splice定位 ends
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
| Lead Time | Prototypes 7 to 15 days; production scheduled by volume |
Common Questions
Why POM for a 17 in rail?
Low friction, low wear, and quiet running against product contact parts. The cost is stress movement during machining, which staged symmetric passes and vacuum fixturing keep ahead of.
What fails on long plastic rails?
Burrs packed into the channel and heat distortion. Sharp tools, cold engagement, and a deburr pass designed for the channel geometry deal with both.
