Aluminum Triangle Mounting Base with Multi Face Interfaces
CNC milled aluminum triangle mounting base: multi face tapped interfaces, precision locating bores, machined finish, CMM verified. Drawing based tolerances, quote within 24 hours.
Robotics & Humanoid Robots
A triangular CNC milled aluminum base that anchors a mechanism through multi face tapped interfaces and precision locating bores, finished in as machined aluminum and verified on CMM against the customer drawing.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Aluminum alloy (6061 series typical; per customer drawing) |
| Process | CNC milling of profile, pockets, and interfaces; drilling and tapping; precision boring of locating bores; deburring; cleaning; CMM inspection |
| Tolerances | Per customer drawing on machined features |
| Finish | As machined, no coating (anodizing available on request) |
| Interfaces | Multi face tapped holes and precision locating bores |
| Inspection | CMM on critical bores, faces, and positions; thread gauges; visual |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
A base plate sets the geometry of everything bolted to it. This triangular base is milled from aluminum billet in a small number of setups, keeping the three corner interfaces, the locating bores, and the mounting faces referenced to one another so the assembly lands square without shimming.

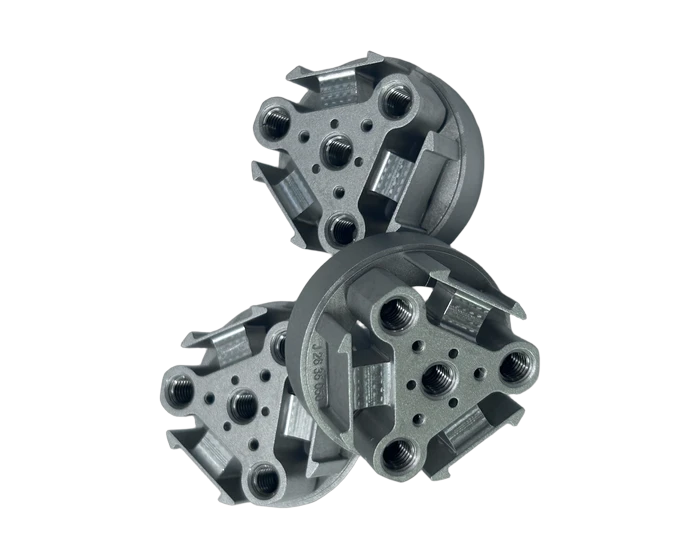

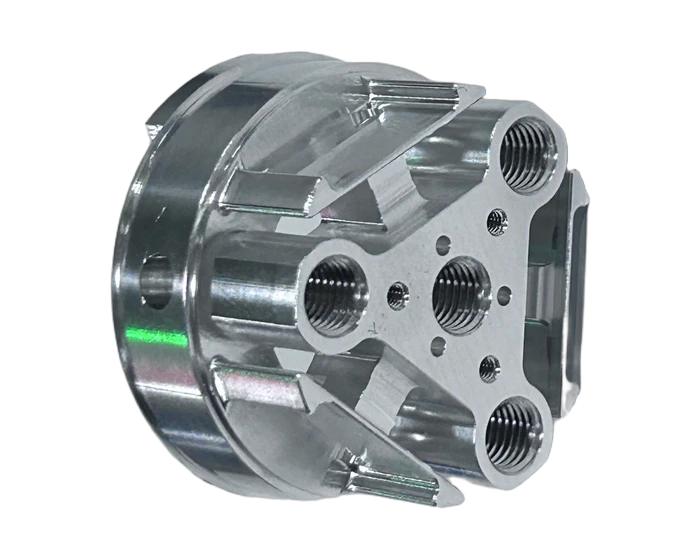

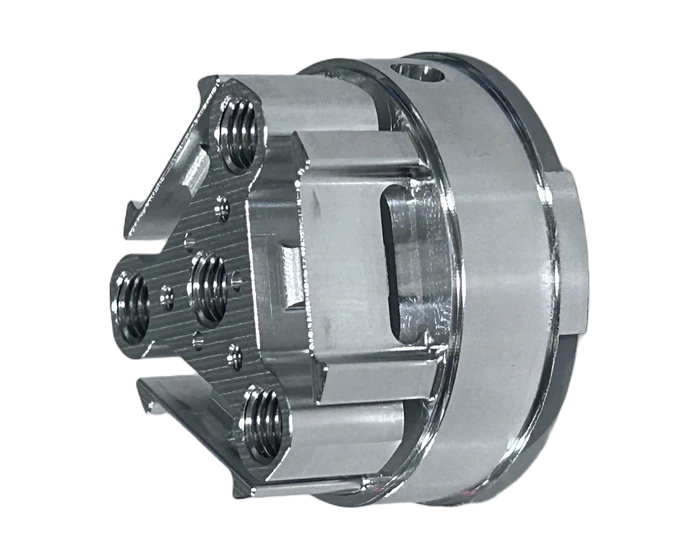

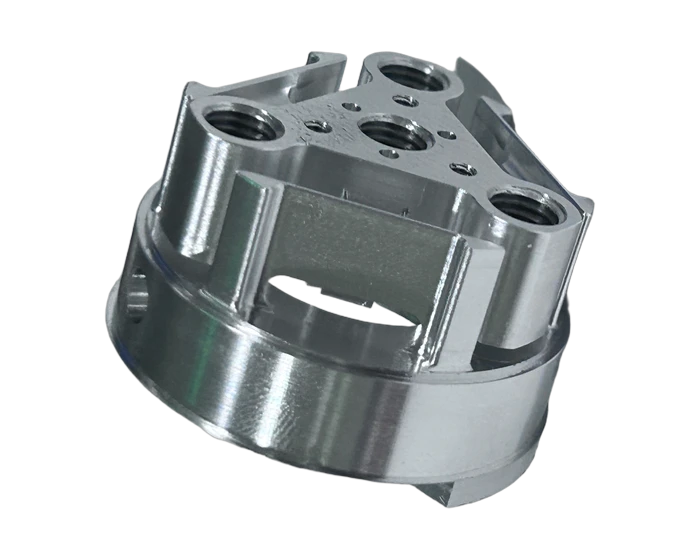

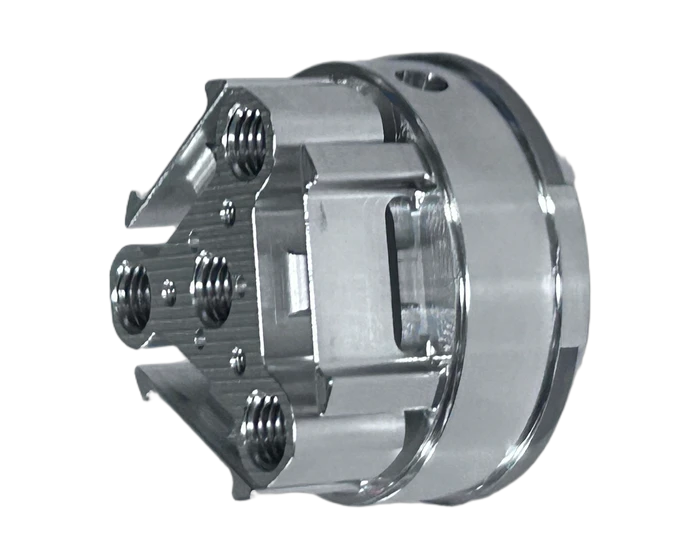

Tapped interfaces sit on the top, sides, and ends of the triangle, letting one part carry actuators, sensors, and covers at once. Critical bores and faces are finished to the drawing callouts and verified on CMM; unmachined faces stay as milled for a clean technical finish.
The photographed parts are from a delivered lot. Full material certification, heat treatment condition, and the complete tolerance stack come from the customer drawing, which governs. Send yours for a quotation with DFM feedback inside 24 hours.
This part family supports the Robotics Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
