SUS316 Module Interface End Cap, Turn-Mill Machined in One Setup
SUS316 module interface end cap: Ø12 H7 bearing seat, position within 0.005 mm, Ø2.1 mm fluid orifice, coaxiality 0.01 mm, laser marked and passivation ready. Quote in 24 hours.
Semiconductor & Optics

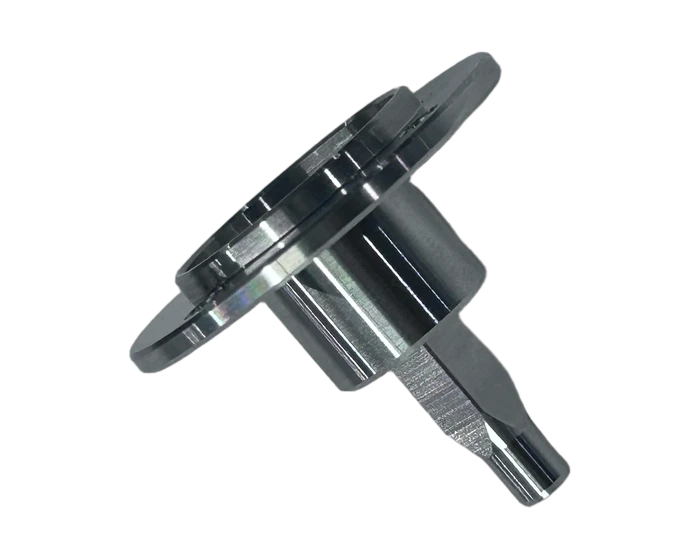

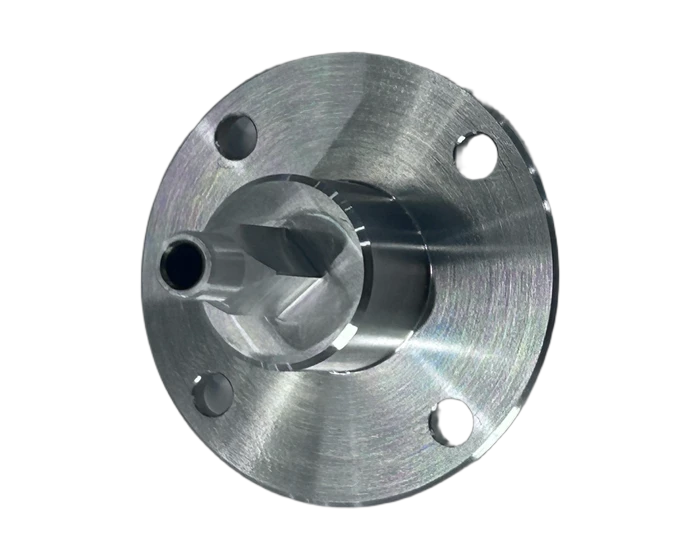

A single-setup turn-mill end cap in SUS316 that integrates a mounting flange, a Ø12 H7 bearing seat, a Ø2.1 mm micro fluid orifice, and an external quick-connect port, with coaxiality within 0.01 mm and full CMM records.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Austenitic stainless steel SUS316 / 316L |
| Process | 5-axis / turn-mill machining in one setup; flange drilling; precision turning of stepped bore and bearing seat; tube port milling; laser marking; ultrasonic cleaning; fine deburring; CMM inspection |
| Bearing seat | Ø12 H7 (+0.018 / 0 mm) |
| Positional accuracy | ≤0.01 mm on fitting faces; ≤0.005 mm on critical fits |
| Center fluid orifice | Ø2.1 ±0.05 mm, flow path wall Ra ≤0.8 um |
| Geometric tolerances | Coaxiality ≤0.01 mm; perpendicularity and parallelism ≤0.01 mm |
| Marking | Laser, ARIAL, 0.01 mm deep |
| Surface | Smooth, scratch free, passivation ready; edges broken to C0.1 |
| Inspection | CMM; air gauge or plug gauge on the H7 seat; microscope for burrs and marking |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
This end cap does the job of three parts in one: it locates a bearing, seals a micro fluid channel, and presents a quick-connect port, all from a single piece of SUS316. Because the fluid orifice, bearing seat, and flange pilot are machined in one clamping on a turn-mill center, their axes stay true to each other, which is what keeps the assembly leak free and free of side load on the bearing.

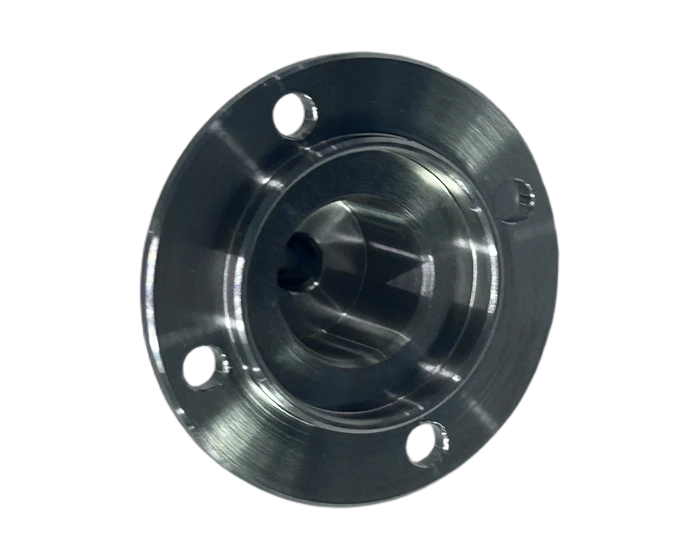

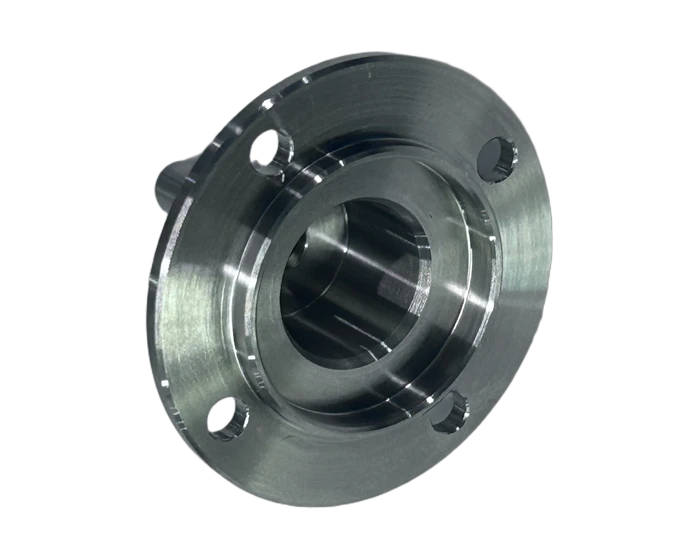

The bearing seat is held at Ø12 H7 with positional accuracy within 0.01 mm, and the critical fitting faces within 0.005 mm. The center orifice runs Ø2.1 ±0.05 mm with the flow path wall finished to Ra 0.8 um or better. A shallow 0.01 mm laser mark carries traceability without disturbing the sealing surfaces.
Every cap is CMM checked for position, coaxiality, and geometric tolerances, the H7 seat is verified with an air gauge or plug gauge, and a microscope pass confirms the micro burr condition and mark legibility. Parts leave cleaned, deburred, and ready for passivation.
This part family supports the Semiconductor Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- Flange, bearing seat, micro fluid channel, and connector port integrated in one SUS316 part
- Ø12 H7 bearing seat with position held within 0.01 mm, critical fits within 0.005 mm
- Ø2.1 ±0.05 mm center orifice with flow path wall at Ra 0.8 um or better
- Single clamping turn-mill route keeps coaxiality within 0.01 mm
- 0.01 mm deep ARIAL laser marking for traceability without sealing damage
- Passivation ready surfaces, CMM and gauge records with every lot
Typical Applications
- Signal and fluid control interfaces for semiconductor equipment
- Micro pneumatic and hydraulic actuator end caps
- Interface covers for optical inspection modules
- High purity fluid transfer flanges for chromatography and analyzers
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
Common Questions
Why SUS316 instead of 304 for a fluid end cap?
The added molybdenum in 316 resists pitting and chloride attack, which matters wherever process fluids or cleaning agents flow. It also carries better cleanliness credentials for fluid and analytical service.
Can the orifice and seat tolerances be adjusted to my drawing?
Yes, the dimensions shown come from a delivered lot. Send your drawing and we quote to your tolerances, flagging any feature that needs grinding or extra setup before you commit.
How is the part protected in transit?
Each cap is cleaned, deburr checked, and packed in individual bubble wrap inside an export carton, with the CMM and gauge records in the box.
