Ti6Al4V Titanium Control Shaft, Turned and Passivated
Ti6Al4V (Grade 5) titanium control shaft: double hex profile, Ra 3.2, 100 percent thread gauging, passivated surface, 3.1 material certificate with every shipment. Quote within 24 hours.
Semiconductor & Optics

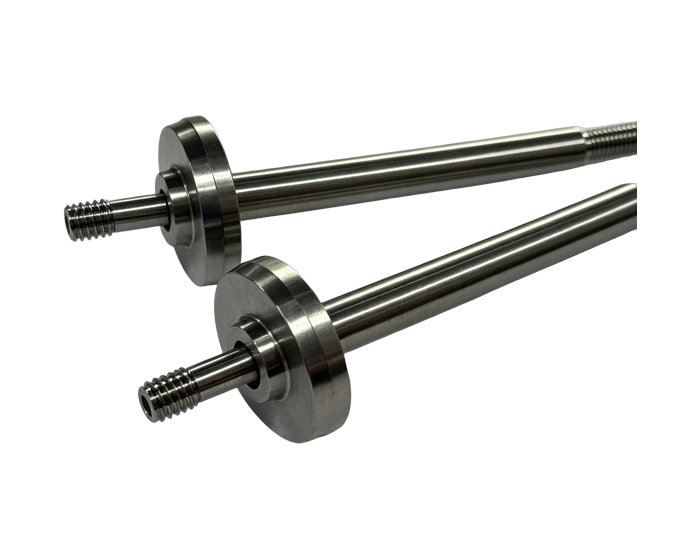

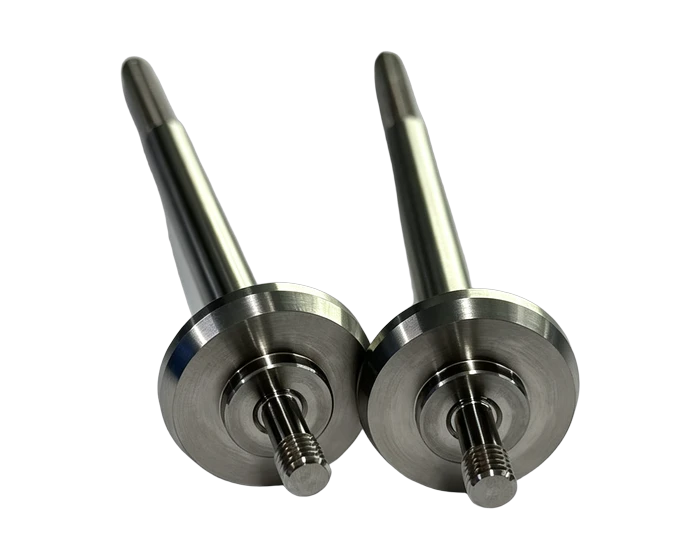

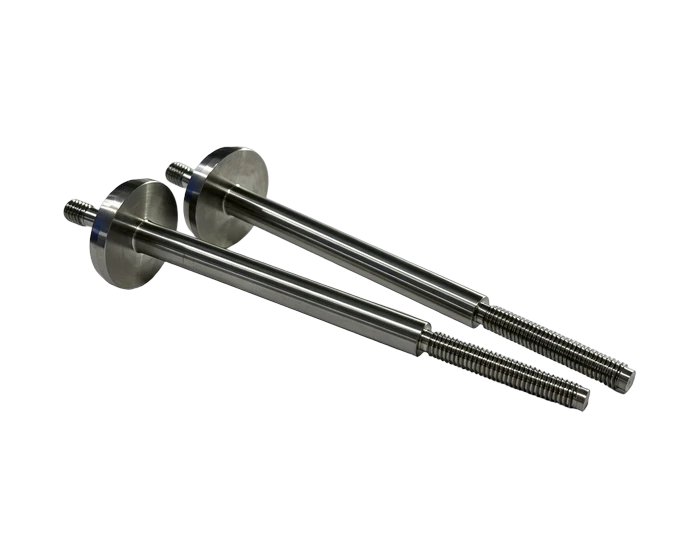

A front cover control shaft turned from Ti6Al4V (ASTM Grade 5) titanium in annealed condition: double hex drive profile, controlled total length, passivated finish, 100 percent thread gauge checks, and a 3.1 material certificate in every shipment.
Or email drawings to kgl@kglmfc.com
Key Specifications
| Parameter | KGL Capability |
|---|---|
| Material | Ti6Al4V titanium, ASTM Grade 5 (TC4), annealed, per GSA 08 3040 |
| Process | CNC turning of all rotary features with center-tip allowance; second turning pass for final length; bench deburring and edge dressing; passivation; 100 percent inspection |
| Surface finish | Ra 3.2 um general |
| Profile | Double hex drive section on turned body |
| Threads and holes | Threads 100 percent go/no-go gauged; fit holes checked with plug gauges |
| Surface treatment | Passivation |
| Quality documents | 3.1 material certificate per shipment |
| Inspection | 100 percent drawing dimension inspection |
| Tolerance | ±0.005 mm standard on metals, engineering plastics, and carbon fiber composite |
| Certifications | ISO 9001:2015, ISO 13485:2016, AS9100D |
| Capacity | 100+ CNC machines including 11 five-axis centers |
| MOQ | No MOQ; 1-piece prototypes supported |
| Quote | Within 24 hours for complete 2D/3D files |
About This Part
This shaft transfers rotary control through a sealed front cover, and titanium earns its place there: Ti6Al4V brings high strength at low density with excellent corrosion resistance, so the shaft keeps turning in environments that would pit a plain steel part. The blank is Grade 5 bar in the annealed condition, per GSA 08 3040 material callouts.
The route is pure turning discipline. The bar is turned to all rotary dimensions with chamfers and flash removed, leaving an extended tip for a center; a second pass removes the tip and sets final total length; a bench pass deburrs and dresses the edges. The double hex profile drives the mating element without slip, and the general surface runs at Ra 3.2 um.
Every thread is gauged with go and no-go ring or plug gauges, every fit hole checked with a plug gauge, and the finished parts are passivated for surface stability. A 3.1 material certificate accompanies each shipment, and drawing dimensions are inspected 100 percent.
This part family supports the Semiconductor Parts industry. Read how KGL machines parts for that sector, then send your drawing for a quote.
Why Machine It at KGL
Five-Axis Fleet
100+ CNC machines including 11 five-axis centers run complex geometry in single setups, so tolerances do not stack up across refixturing.
Verified Accuracy
±0.005 mm standard on metals, plastics, and carbon fiber composite, verified on Hexagon and Zeiss CMMs (0.0015 mm accuracy).
Fast Prototypes
Engineering feedback with every quotation; prototype parts typically machined in 15 to 25 days.
One Supplier, End to End
Material sourcing, machining, heat treatment coordination, finishing, CMM inspection and export packaging under one roof.
Part-Specific Advantages
- Ti6Al4V (ASTM Grade 5 / TC4) in annealed condition, per GSA 08 3040 callouts
- Double hex drive profile turned concentric with the shaft axis
- General surface Ra 3.2 um with dressed edges and no flash
- 100 percent thread go/no-go gauging and plug gauge checks on fit holes
- Passivated surface for corrosion resistance and cleanliness
- 3.1 material certificate with every shipment
Typical Applications
- Control shafts through sealed equipment front covers
- Rotary drive elements on valves and actuators
- Corrosion resistant shafts for process and analysis equipment
Commercial Terms
| Commercial | Detail |
|---|---|
| MOQ | No MOQ; 1-piece prototype supported |
| Quote | Within 24 hours for complete 2D/3D files |
| Terms | EXW / FOB Shenzhen |
| Certifications | ISO 9001:2015 |
| Packaging | Individual bubble wrap, export carton or wooden case |
Common Questions
Why titanium for a control shaft?
Ti6Al4V keeps high strength at roughly half the weight of steel and shrugs off corrosion that would pit plain or plated steels. On a shaft that passes through a sealed cover and must keep moving cleanly, that combination justifies the premium.
Is the annealed condition important?
Yes, annealed Grade 5 machines more predictably and delivers stable, well distributed mechanical properties; the material callouts on this part specified it and we certified it.
What does the 3.1 certificate cover?
It certifies the actual melt chemistry and mechanical properties of the bar stock used for your shipment, issued by the material producer and passed through with the parts.
